FusionScope is an innovative correlative microscopy platform that integrates AFM measurement techniques, SEM imaging, and EDS elemental analysis.

Download the Brochure for More Information

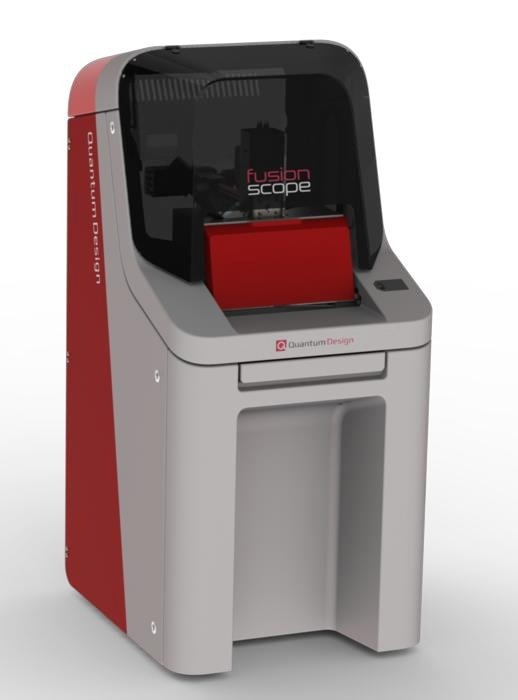

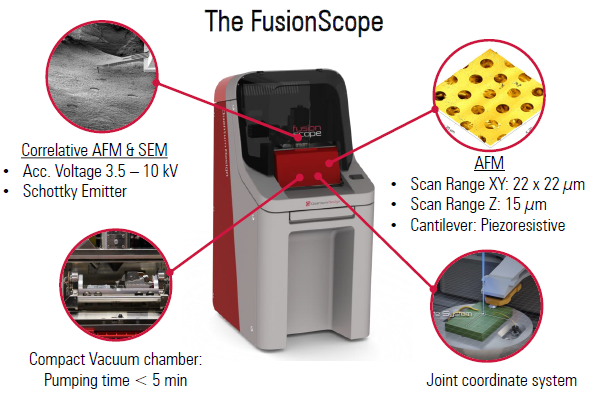

The FusionScope

Correlative AFM & SEM

  • 3.5–15 kV Acc. voltage
  • Schottky emitter

AFM

  • Piezoresistive cantilever
  • Scan range: 222 µm (XY)
  • Scan range: 11 µm (Z)

Compact Vacuum Chamber:

Pumping time: Less than 5 minutes

Joint Coordinate System

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

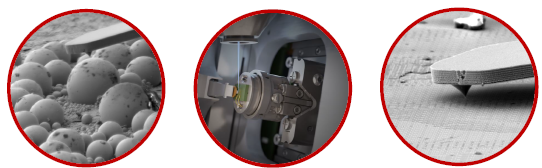

Main Benefits of Correlative AFM and SEM Microscopy:

  • FusionScope is a user-friendly platform that combines the advantages of SEM and AFM.
  • Accurately position the AFM on your area of interest, even on complex or difficult surfaces.
  • Conduct a comprehensive analysis of topography, nanomechanics, chemistry, electrical, and magnetic properties using correlative SEM and AFM techniques.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

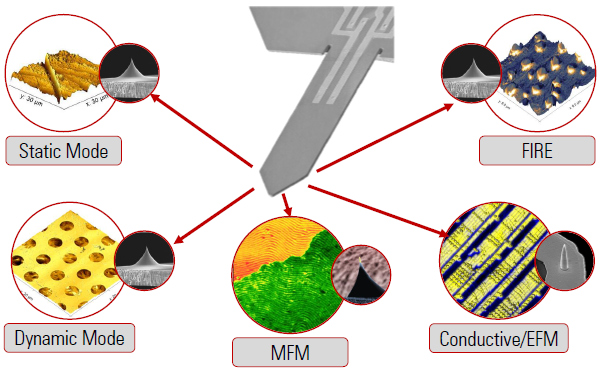

Self-Sensing Cantilever

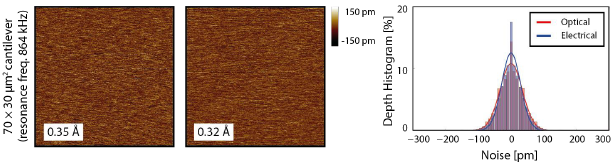

The electrical noise level of 0.32 Å for the self-sensing cantilever is equivalent to the optical noise level.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: M. Dukic et al., Scientific Reports 5, 16393 (2015)

EFM Analysis of BaTiO3 Ceramics

Investigate grain boundary interfaces and energy barriers as a function of silica content.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

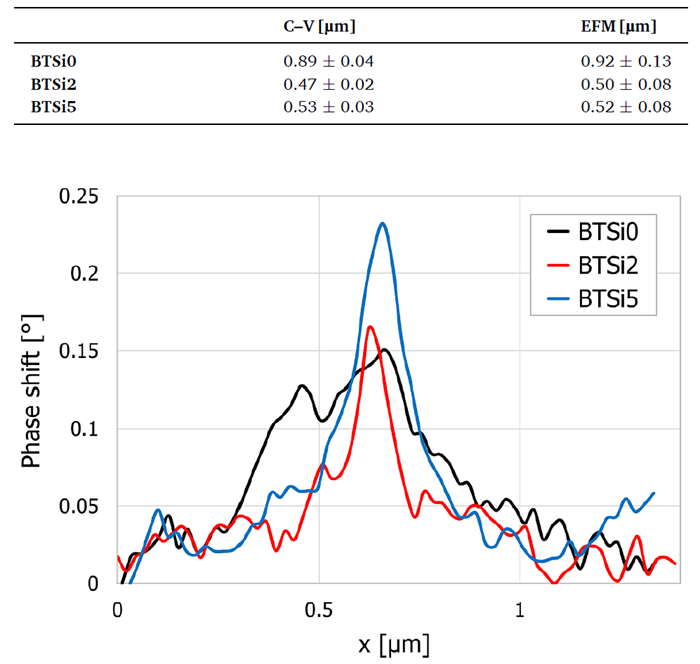

Silicon-rich phase shows a smaller energy barrier.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Prohinig et al., Scripta Materialia 214 (2022) 114646

Download the Brochure for More Information

Magnetic Properties of Duplex Steel

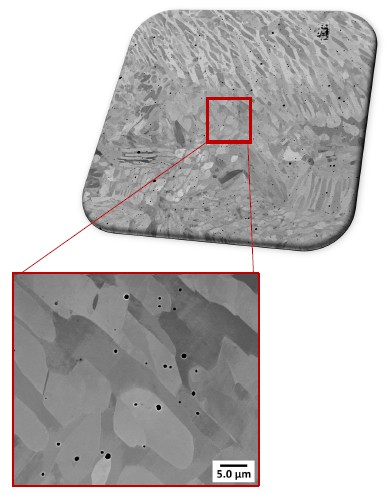

Utilize SEM to identify and map different magnetic domains on the surface of Duplex Steel.

 FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

Integrate SEM, EBSD, AFM topography, and MFM data for comprehensive correlative analysis.

 FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

Summary

FusionScope

An innovative method for interactive correlative research at the nanoscale that combines AFM and SEM.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

Analyze Electrical Properties

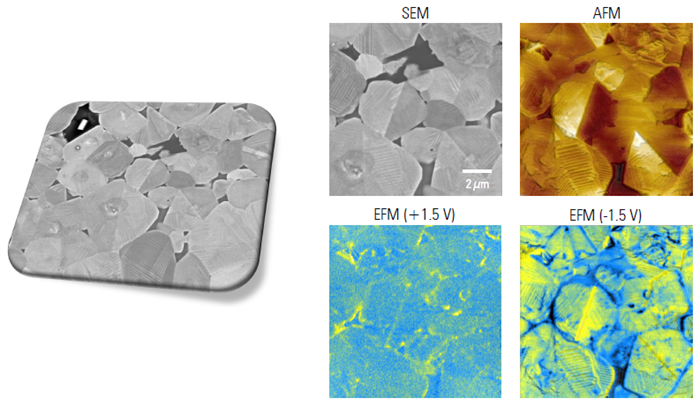

Conduct in-situ EFM characterization at the BaTiO3 grain boundaries.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

Analyze Magnetic Properties

Conduct MFM characterization of duplex steel in situ.

FusionScope - Integrated AFM, SEM, and EDS

Image Credit: Quantum Design International

Download the Brochure for More Information

Other Equipment by this Supplier

Simultaneous AFM and SEM with AFSEM®

Simultaneous AFM and SEM with AFSEM®
