Why Engineers Trust SmartPave DSR for Advanced Asphalt Rheology Testing

Need more information?

Let us help you with your inquiries, brochures and pricing requirements

Request A Quote
Download PDF Copy
Download Brochure

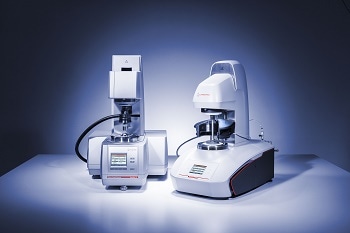

The SmartPave 93 and SmartPave 303 dynamic shear rheometers (DSR) test asphalt binder and bitumen with precision.

Integrated Toolmaster QuickConnect Peltier temperature device for dry sample heating is easy to use, with step-by-step instructions for measurement methods in accordance with AASHTO T315, T350, TP101, ASTM D7175, D7405, and DIN EN 14770.

Both instruments can be fitted with a Peltier-controlled measurement chamber for concentric cylinder shapes to meet AASHTO T316, ASTM D4402, and DIN EN 13302 standards.

SmartPave 93

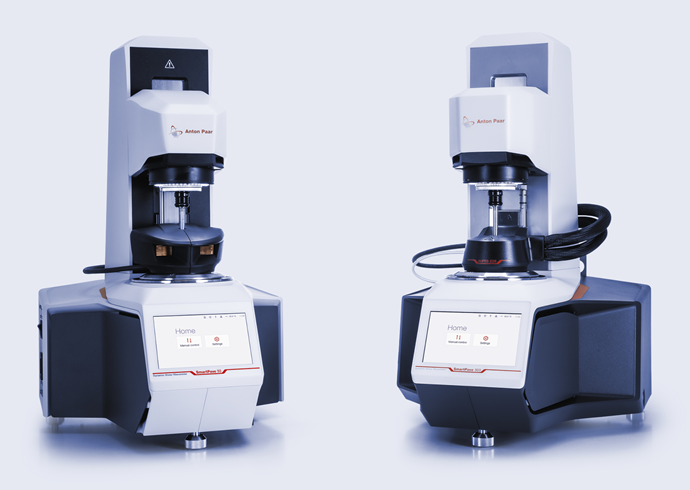

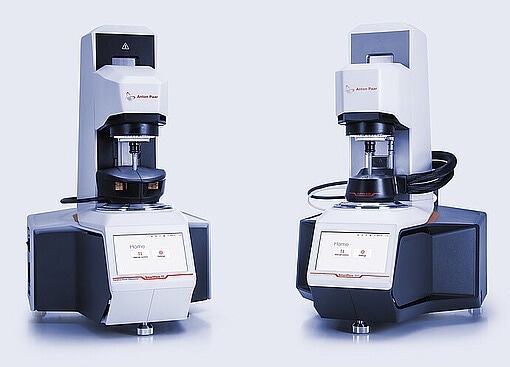

Product image of both instruments.

Image Credit: Anton Paar GmbH

Cool Peltier temperature device: No need for thermostats
Quality assurance and regular assessments of asphalt and bitumen
Illuminated sample zone for optimal trimming outcomes

SmartPave 303

Rheometer designed for the research and development of asphalt and bitumen
Illuminated sample area ensures optimal trimming results
Upgradeable for conducting tests on solid mastic materials
Appropriate for measuring rubber-modified bitumen and functioning at low temperature ranges as low as -50 °C

Key Features

Two Models: Full-Spectrum Rheological Asphalt and Bitumen Testing

The popular SmartPave dynamic shear rheometers assess unmodified and modified asphalt binder and bitumen throughout a wide temperature range, either according to standards or using conventional rheological methods.

SmartPave 303 satisfies the highest measuring standards throughout the board.
SmartPave 93 is specifically developed to meet the demands of quality control and routine measurements in asphalt testing laboratories.

The Ultimate Rheometer Software

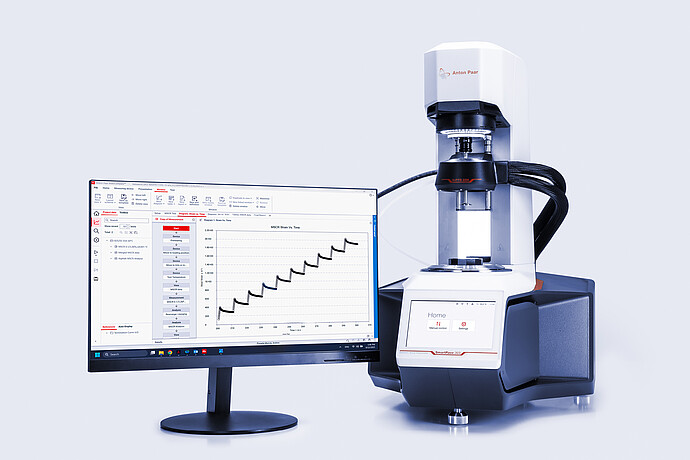

The software visible on a computer screen, sits next to the instrument. White background.

Image Credit: Anton Paar GmbH

RheoCompass is the market-leading rheometer software, providing a comprehensive overview and deep insights. It includes various templates designed specifically for use with the dynamic shear rheometer in the asphalt industry.

The predefined test methods offer step-by-step instructions for all test types specified by AASHTO, ASTM, DIN EN, and FGSV. Templates are routinely updated to ensure users remain in compliance with the latest version of the standard.

Unique Accessories for Easy Handling

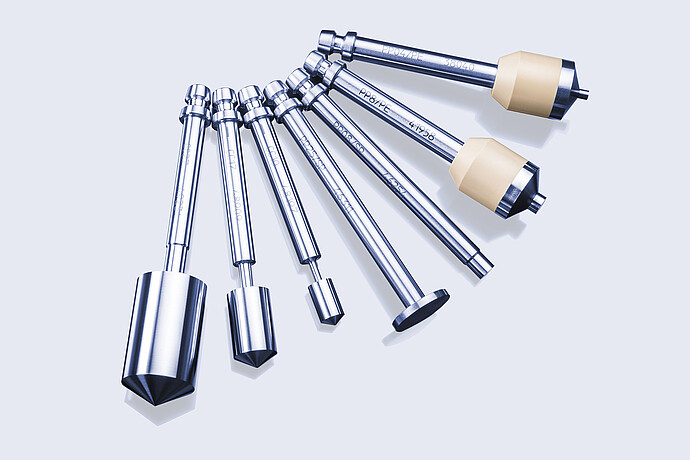

Unique accessories for easy handling.

Image Credit: Anton Paar GmbH

The SmartPave 93 and SmartPave 303 temperature control units are the first Peltier heating systems that include heating components above and below the sample, as well as the broadest temperature range.

Both instruments contain Toolmaster. It is the first entirely contact-free automatic tool identification and setup system for rheometers, recognizing measurement systems and temperature control units as soon as they are attached: No more manual data entry.

Fully Automatic Temperature Calibration

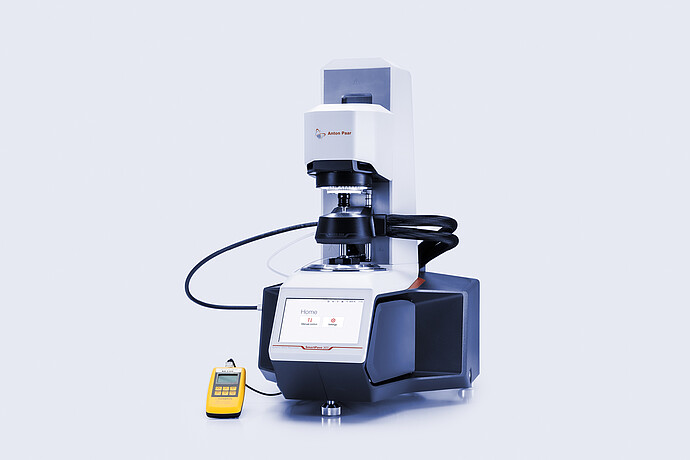

Image of the device being calibrated.

Image Credit: Anton Paar GmbH

Temperature accuracy and stability are critical in asphalt testing.

Anton Paar's RheoCompass software provides completely automatic temperature calibration and verification methods. The SmartPave dynamic shear rheometer's automated calibration assures temperature gradients of <0.1 °C, making it ideal for asphalt processes.

Upgrade the SmartPave DSR to a BBR

Enhance the SmartPave 303 or 93 with a specialized software solution from Pavement Systems LLC, a collaborative partner. Connect seamlessly to this external analysis program and have access to a variety of functions, including iCCL testing.

This effective approach (a surrogate of BBR [AASHTO PP112]) gives low-temperature PG-grade, m-value, stiffness (S), and ΔTc data in under 30 minutes.

Experienced Experts on Hand

A science engineer reviews a spectra on a desktop.

Image Credit: Anton Paar GmbH

Anton Paar's global service network guarantees that an expert on the system is consistently accessible. The vast number of installed instruments worldwide, coupled with a comprehensive application database and partnerships with civil engineering institutions, clearly demonstrate that Anton Paar is the leading authority on rheological inquiries into asphalt binders and bitumen.

Specifications

Source: Anton Paar GmbH

Technical Data	Unit	SmartPave 93	SmartPave 303
Bearing design	-	Air, fine-pored carbon
Motor design	-	Electronically Commutated (EC) - Permanent Magnet Synchronous Motor
Displacement transducer design	-	High-resolution optical encoder
Normal force measurment design (US Pat. 6167752,1996)	-	-	360 ° capacitive sensor, non-contacting, fully integrated in bearing
Working mode	-	Combined Motor Transducer (CMT)
Minimum torque (rotation)	nNm	0.8 µNm	5
Minimum torque (oscillation)	nNm	0.8 µNm	1
Maximum torque	mNm	160	215
Minimum angular velocity¹	rad/s	0	0
Maximum angular velocity	rad/s	261	314
Maximum speed	1/min	2500	3000
Minimum frequency²	Hz	10^-7	2 x 10^-8
Maximum frequency³	Hz	100	200
Normal force range	N	-50 to +50	-50 to +50
Dimensions (W × H × D)	mm	442 × 725 × 596	453 × 725 × 673
Three-point support of the device (three robust feet for tool-free one-hand alignment)	-	Yes	Yes
Three-point support for mounting of measuring cells (wobble prevention, no misalignment after changing cells)	-	Yes	Yes
Maximum temperature range⁴	°C	-50 to +400	-170 to +1000
Virtually gradient-free temperature control (horizontal, vertical)	-	Yes	Yes
Temperature gradient <0.1 °C according to AASHTO and ASTM	-	Yes	Yes
CoolPeltier^™ Peltier System with built-in cooling option that does not require additional accessories for counter cooling	°C	-5 to +200	-5 to +200
Pressure Cell	bar	up to 170	up to 1000
TruRay^™ dimmable illumination of the sample area	-	Yes	Yes
RheoCompass Software
Asphalt standard operation procedures (SOP) with regular updates	-	Yes	Yes
Fully automatic temperature calibration	-	Yes	Yes
Test and analysis designer	-	Yes	Yes
Report designer (with all test information for export and print)	-	Yes	Yes
Managed lab for multiple clients and servers	-	Optional	Optional

1. In controlled shear stress (CSS) mode. In controlled shear rate (CSR) mode, depending on measuring point duration and sampling rate.
2. Theoretical value (duration per cycle = 2 years)
3. Higher frequencies are possible using multi-wave functionality (942 rad/s (150 Hz) or even higher, depending on measuring system and sample)
4. Depending on the used temperature device
