The Cora 5001 Raman analyzer from Anton Paar GmbH allows the rapid, reliable identification of substances based on their distinct chemical fingerprint, as well as the efficient monitoring of chemical changes.

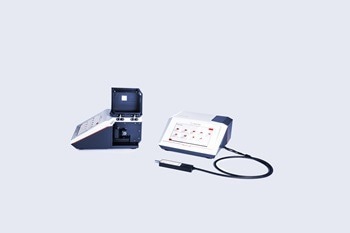

Two models are available: the Fiber model enables analysis outside the instrument via a probe, while the Direct model analyzes samples in a closed compartment. The Direct model is certified as laser Class 1, highlighting its focus on user safety.
Users can operate the Cora 5001 with only minimal training, thanks to its intuitive guided analysis processes. These benchtop instruments’ small footprint and optional battery power make them versatile tools for a wide range of analytical tasks, whether these are being performed in-house or in the field.
Key Features
The Cora 5001 Raman analyzer offers an array of innovative, powerful features.
Safe and Easy: A Class 1 Laser Product with Intuitive User Guidance
![Compact Raman Spectroscopy Redefined: Meet the Cora 5001](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9096_17206844815136385.jpg)
Image Credit: Anton Paar GmbH

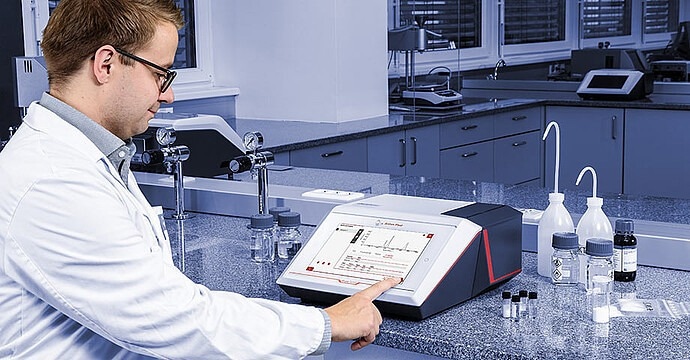

Even inexperienced users, new employees, or students can learn to operate the Cora 5001 Raman spectrometers within minutes. New users can perform safe, efficient Raman spectroscopy measurements within a very short time.
Unlike a significant number of handheld instruments, the Cora 5001 Direct Raman instruments have laser Class 1 specifications. This ensures the instruments are extremely safe to use, and, because the laser may only be activated when the measuring chamber is closed, this instrument poses no risk to people working in its vicinity.
No Sample Preparation and an Array of Efficiency-Boosting Accessories
![Compact Raman Spectroscopy Redefined: Meet the Cora 5001](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9096_17205168772286286.jpg)
Image Credit: Anton Paar GmbH

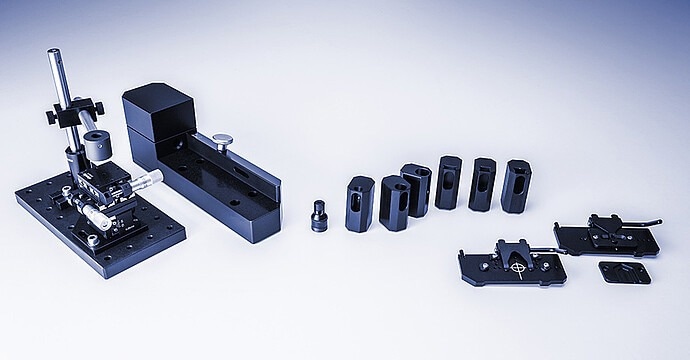

The Cora 5001 includes appropriate sample holders to accommodate a range of solid, liquid, and powder samples. Vials with a range of diameters and shapes can be used, including round, square, and rectangular vials.
It is also possible to directly analyze solid samples such as pills or sample carriers. All sample holders are fitted with magnets, meaning that these can be quickly and precisely positioned within the instrument and immediate sample measurement can be performed with no need for refocusing.
One Instrument, Many Samples
![Compact Raman Spectroscopy Redefined: Meet the Cora 5001](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9096_17205168856478232.jpg)
Image Credit: Anton Paar GmbH
The Cora 5001 is ideal for users working with fluorescing substances or many different samples. Dual wavelength models provide two different excitation wavelengths in one instrument, allowing them to cover the broadest range of samples and account for possible fluorescence.
Each wavelength is included in its independent optical spectrometer system, meaning that users can analyze the whole range of substances by switching between wavelengths at the click of a button. There is no need to align or recalibrate between analyses.
Ensuring Pharma Compliance with the Anton Paar Spectroscopy Suite
![Compact Raman Spectroscopy Redefined: Meet the Cora 5001](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9096_17205168932638217.jpg)
Image Credit: Anton Paar GmbH

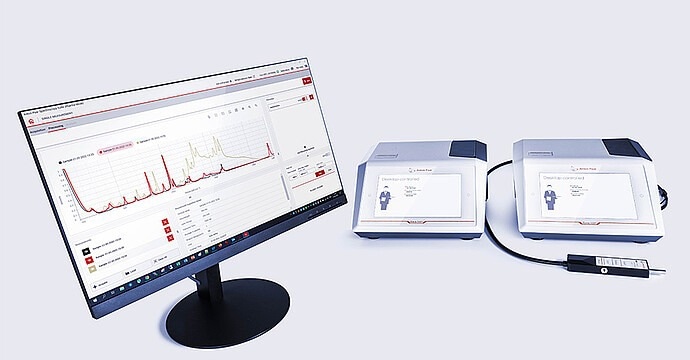

Performing Raman analysis in a regulated environment is significantly more straightforward thanks to the Anton Paar Spectroscopy Suite.
Intuitive workflows guide the operator through daily analysis tasks, while laboratory managers are given useful guidance on setting up methods and managing reference databases.
The system’s comprehensive signing and version tracking ensure complete traceability, while advanced audit trail commenting and search functionality facilitate audits. All data is securely stored in an SQL database.
Autofocus: Maintain the Strongest Signal for Reproducible Results
![Compact Raman Spectroscopy Redefined: Meet the Cora 5001](https://d12oja0ew7x0i8.cloudfront.net/images/equipments/EquipmentImage_9096_1720516900502443.jpg)
Image Credit: Anton Paar GmbH

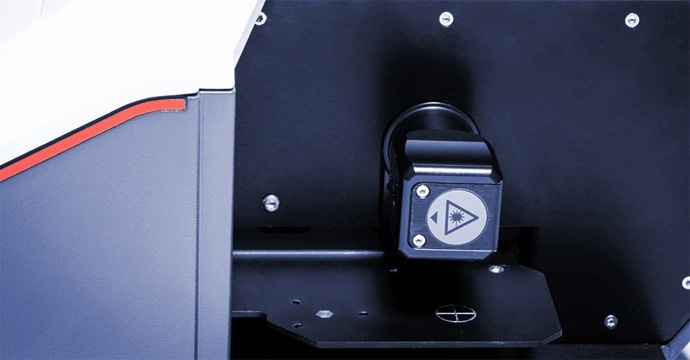

There are several challenges associated with manually focusing onto thin or opaque samples with a weak Raman signal. The Cora 5001’s powerful autofocus feature addresses this issue by automatically finding the location with the best Raman signal within seconds. This feature ensures reproducibility by essentially making the analysis independent of the user.
Technical Specifications
Source: Anton Paar GmbH
|
Single-wavelength |
Dual-wavelength |
Optical specifications |
Excitation wavelength |
532 nm |
785 nm |
1064 nm |
532 nm and 785 nm |
532 nm and 1064 nm |
785 nm and 1064 nm |
Spectral range |
200 cm-1 to
3500 cm-1 |
100 cm-1 to
2300 cm-1 |
100 cm-1 to
2300 cm-1 |
200 cm-1 to 3500 cm-1 for 532 nm
100 cm-1 to 2300 cm-1 for 785 nm and 1064 nm |
Resolution (according to ASTM E2529) |
9 cm-1 to
12 cm-1 |
6 cm-1 to
9 cm-1 |
12 cm-1 to
17 cm-1 |
9 cm-1 to 12 cm-1 for 532 nm
6 cm-1 to 9 cm-1 for 785 nm
12 cm-1 to 17 cm-1 for 1064 nm |
Laser power |
50 mW** |
0 mW to 450 mW*, adjustable |
0 mW to 450 mW*, adjustable |
50 mW* for 532 nm
0 mW to 450 mW* for 785 nm and 1064 nm |
Spectrograph |
f/2; Transmission volume phase grating (VPG) |
Integration time |
0.005 s to
600 s |
0.005 s to
600 s |
0.001 s to
20 s |
0.005 s to 600 s for 532 nm and 785 nm
0.001 s to 20 s for 1064 nm |
Wavelength calibration |
Automatic via software |
Detector array |
2048 px
CCD |
2048 px
CCD |
256 px
InGaAs |
2048 px CCD for 532 nm and 785 nm
256 px InGaAs for 1064 nm |
Laser class |
1 for Direct model
3B for Fiber model |
Physical Specifications |
Dimensions (D x W x H) |
355 mm x 384 mm x 168 mm (14.0 in x 15.1 in x 6.6 in) |
Weight |
9.8 kg |
Operating range |
10 °C to 35 °C (non-condensing) |
Fiber probe dimensions |
Cable length: 1.50 m |
Battery (optional) |
Lithium-ion |
Battery run time |
>1.5 h |
Power supply input |
Line power supply input: 115/230 V AC, 50/60 Hz
Car power adapter input: 9 V to 32 V DC |
Power consumption |
In-line power supply input: max. 100 VA
DC input: typical 30 VA (60 VA when optional battery is charged) |
Additional Specifications |
Display |
10-inch touch screen |
Data ports |
4 x USB 2.0, 1 x Ethernet, 1 x CAN out and 1 x USB to PC |
Data export formats |
.csv, .txt, .png, .spc,. aps, .pdf |
Internal storage |
8 GB |
Wireless connectivity |
Wi-Fi stick (optional) |
Spectral libraries |
Factory library, user-built, third-party options |
Security |
User roles with customizable permissions, user password logins |
*at sample
**at laser source
