The Anton Paar Bioindenter is an excellent nanoindentation tester for determining the mechanical characteristics of human body tissue and soft materials. It is intended to study soft biological materials, such as soft tissue.
The Bioindenter has an unrivaled force and displacement range and outstanding resolution, making it ideal for determining the elastic modulus, creep, and other characteristics of cartilage, tissues, scaffolds, hydrogels, and eye tissues.
Mounted on a Step platform, the UNHT3 BIO head can be paired with another indentation or scratch testing head to cover the whole force range from nano to macro. Use the AFM to characterize the mechanical surface fully.
- Measurement of soft and biological materials
- Most sensitive characterization of elastic modulus, creep and other properties
- Wide range of indenters available (spherical, flat-punch, Berkovichs, Vickers, cube-corner, custom-made)
Key Features

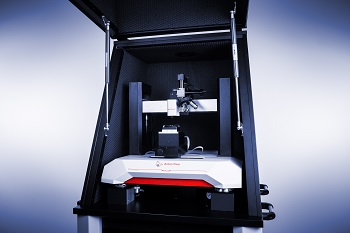

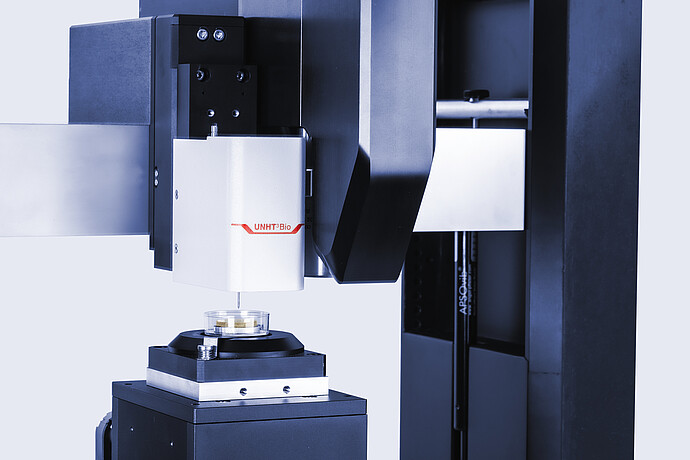

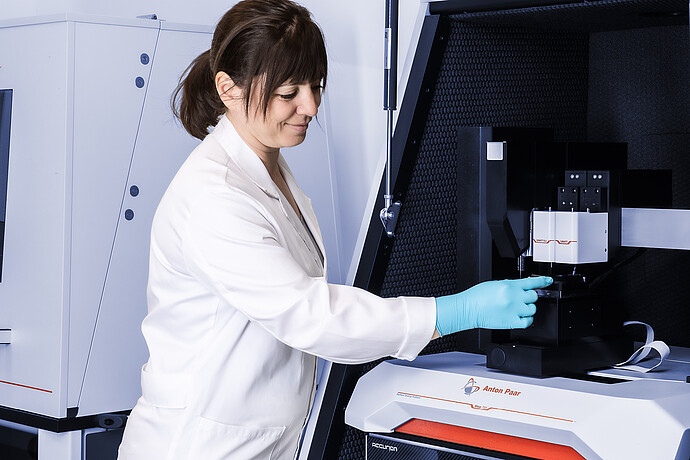

Anton Paar Bioindenter: Dedicated to the Research
Image Credit: Anton Paar GmbH
Investigations using the Anton Paar Bioindenter yield useful insights into the mechanical behavior of very soft biological materials. This is especially useful when trying to better understand the human body, such as enhancing diagnostics, generating new drugs, engineering tissues, and so on.
The Bioindenter has unique characteristics for biomaterial testing, such as the ability to make controlled force versus depth measurements. Furthermore, it detects surfaces through changes in contact stiffness and uses measuring techniques specifically designed for biological materials.

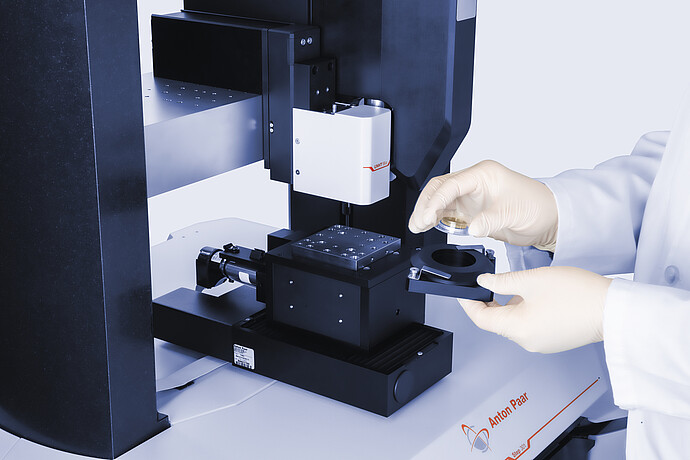

The Indentation Procedure: Optimized for Measurements
Image Credit: Anton Paar GmbH
The Anton Paar Bioindenter provides a variety of indentation processes, including quasi-static, dynamic, and user-defined indentation modes. In addition to the conventional analysis models, it incorporates the Hertz model and automated pull-off adhesion analysis. Users will love working with the bioindenter because it allows them to easily determine contact points.

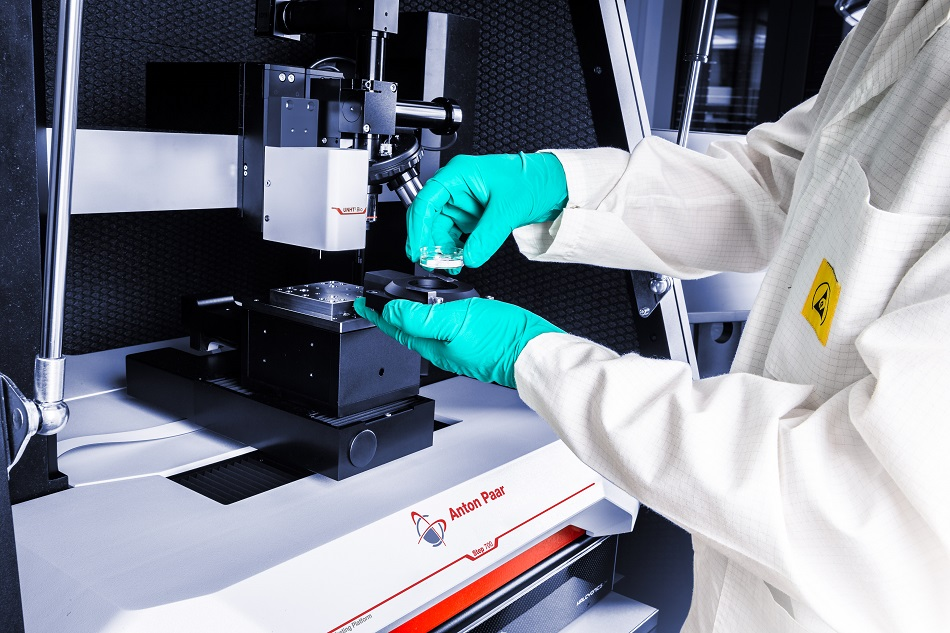

The Measurement System: A Class of its Own
Image Credit: Anton Paar GmbH

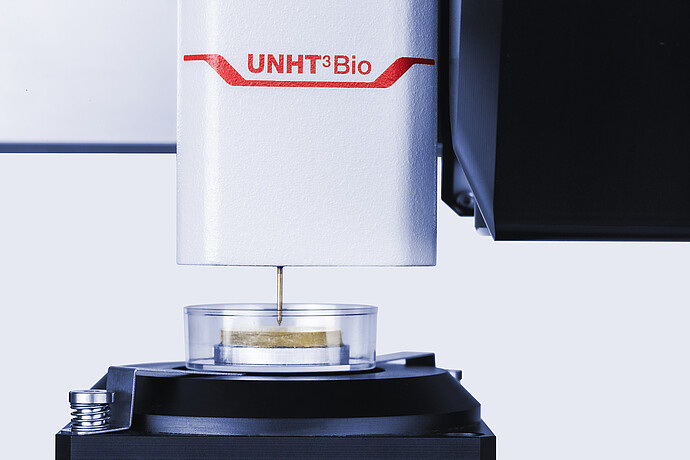

The device's measuring unit is specifically built for high-precision nanoindentation in biology and medicine. The genuine force sensor can apply a maximum load of 20 mN, and the displacement sensor provides a broad travel range.
Furthermore, the Anton Paar Bioindenter offers excellent thermal stability for studying creep and flow parameters. The offered microscope has a long working distance objective. The motorized precision table allows for movements in the X, Y, and Z axes to properly position the sample.

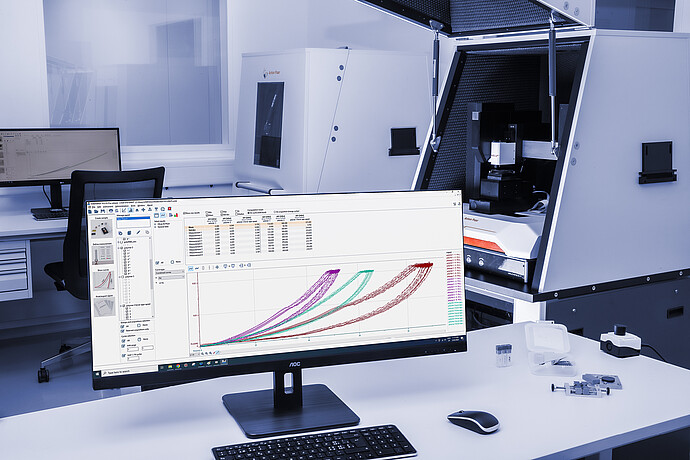

Software: The Key to the Results
Image Credit: Anton Paar GmbH
With the powerful yet simple program, users have complete control over the indentation methods (load, displacement, etc.). The findings are automatically examined, and a statistics module provides a quick summary of the data and results. Numerous users with regulated access privileges can use the instruments, and user-defined ASCII exports are possible.
The elastic modulus could be determined from the loading section of the indentation curve using Hertz’s model, which is more suited to biological materials than the frequently used Oliver & Pharr method.

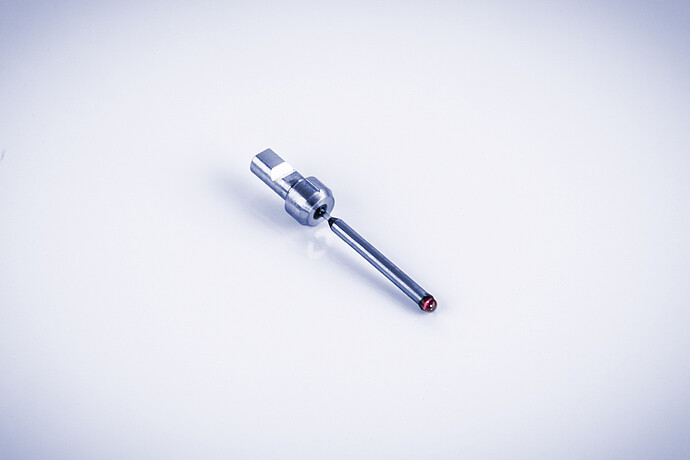

Different Kinds of Indenters: The Choice is the User’s
Image Credit: Anton Paar GmbH
Depending on the materials and requirements, the Anton Paar Bioindenter works with various indenters. Spherical indenters with radii ranging from 0.01 mm to 0.5 mm and larger are available, as well as flat-punch (flat-ended cylinder) indenters, Berkovich indenters, Vickers indenters, cube-corner indenters, and custom-made indenters for even the most demanding applications (large radii spheres, cylinders, etc.).

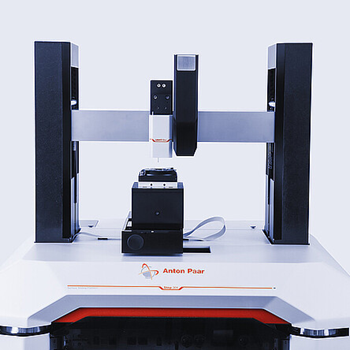

The Versatile Step Platform Concept
Image Credit: Anton Paar GmbH
Depending on the test conditions and predicted sensitivity, choose an appropriate solution from our platform portfolio. Step platforms provide solutions for single applications in specialized laboratories and shared equipment across departments.
Their versatility allows them to perform high-sensitivity indentation testing on biomaterials, characterization of hard polymer samples, and scratch testing on the same platform.
Technical Specifications
Source: Anton Paar GmbH
| Force |
| Max. force |
20 mN |
| Resolution |
down to 0.001 µN |
| Noise floor |
0.1 [rms] [μN]* |
| Depth |
| Max. depth |
100 μm |
| Resolution |
down to 0.006 nm |
| Noise floor |
0.25 [rms] [nm]* |
*Noise floor value specified under ideal laboratory conditions and using an anti-vibration table.
