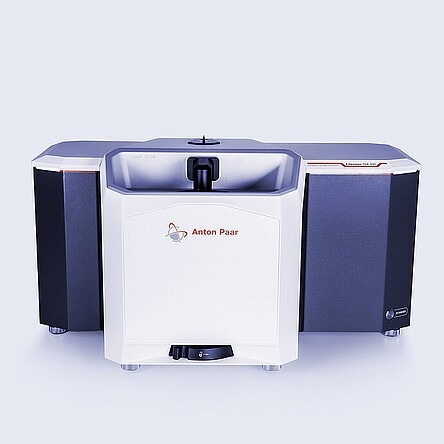

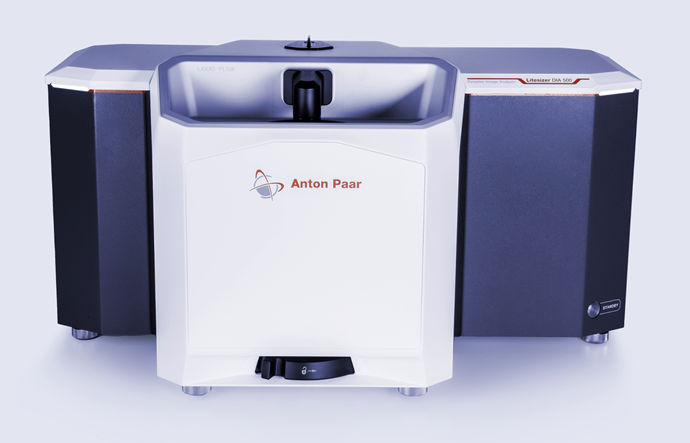

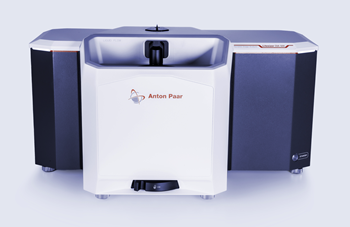

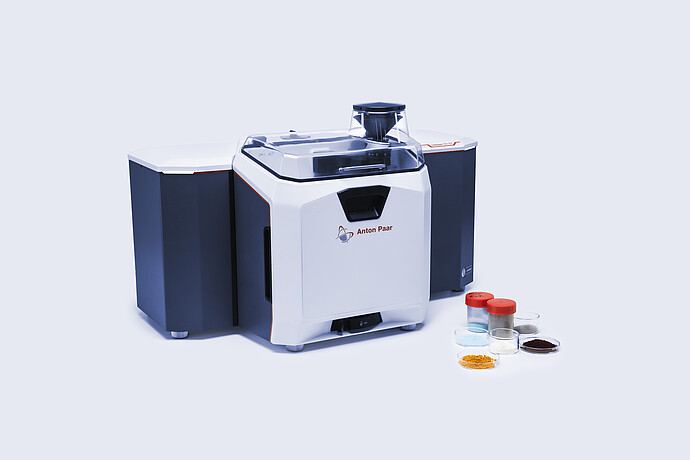

The Litesizer DIA 500 from Anton Paar GmbH is a dynamic image analyzer that leverages the power of direct image acquisition to deliver straightforward, reliable characterization of particles’ size and shape.
Users can switch between the instrument’s three modules in a single step, ensuring excellent sample dispersion whether using dispersion liquid, compressed air, or free-fall methods.
Particle analysis and measurements can be completed at the touch of a button, with minimal training requirements, thanks to a range of automated features, including feeding rate adjustment and liquid rinsing.
Key Features
A Single Measurement for Particle Size and Shape
Image Credit: Anton Paar GmbH
The Litesizer DIA 500 delivers several advantages over conventional sieve analysis. These include:
- The capacity to measure samples’ size and shape with a broad particle size range of 0.8 µm to 8000 µm
- The ability to detect and analyze even single outlier particles in populations counted in millions
- A market-leading liquid dispersion range of up to 2500 µm
- Improved insight into particle size and shapes’ impact on processes
Optimized Measurements via the Kalliope Software
Image Credit: Anton Paar GmbH

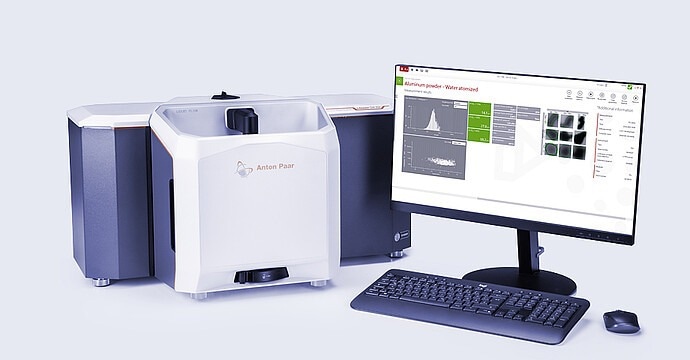

The measurement process can be streamlined and optimized using the Kalliope software:
- The measurement process can be started in just three clicks.
- Kalliope's one-page workflow allows size, shape, and image analysis in one digital space.
- Kalliope’s powerful filtering features enable the location of particles with a specific size and shape in just a few clicks.
- All Anton Paar particle-sizing instruments can be controlled within Kalliope.
Ensuring Operator Safety
Image Credit: Anton Paar GmbH

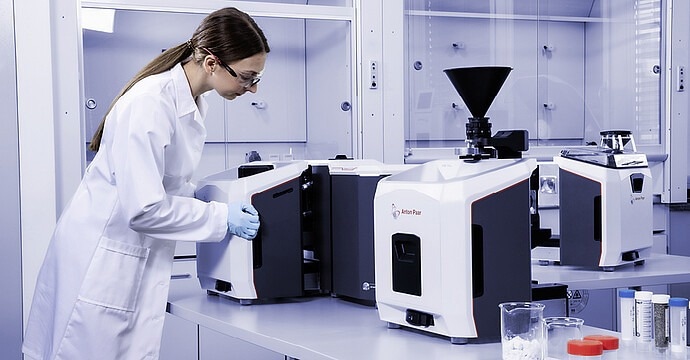

The Litesizer DIA 500 places operator safety at the core of its functionality. Safety features include:

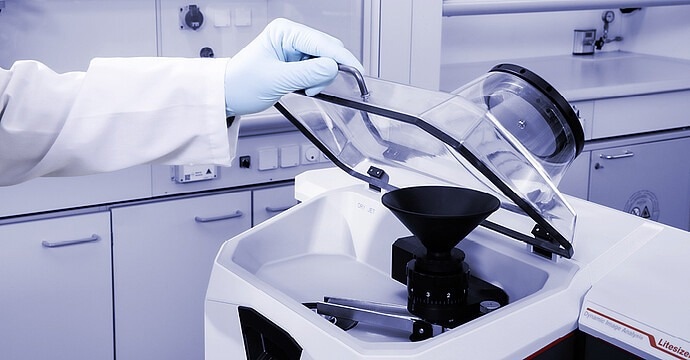

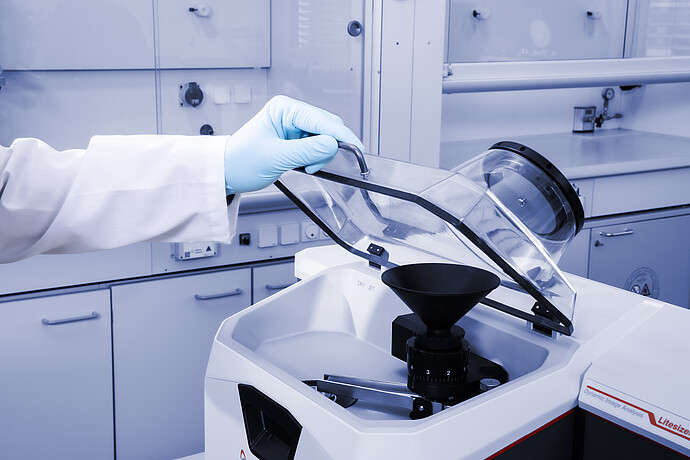

- An integrated safety cover prevents dangerous sample spread.
- Sonication will not commence until there is enough liquid in the system, meaning that the dynamic image analyzer will never overheat.
- An automated suction check ensures that any dangerous samples are contained.
- Robust protection against ingress of water and particles.
Full compliance with relevant safety standards including EN 61010:2010 and ISO 12100:2011.
Three Dispersion Units in One Dynamic Image Analyzer
Image Credit: Anton Paar GmbH

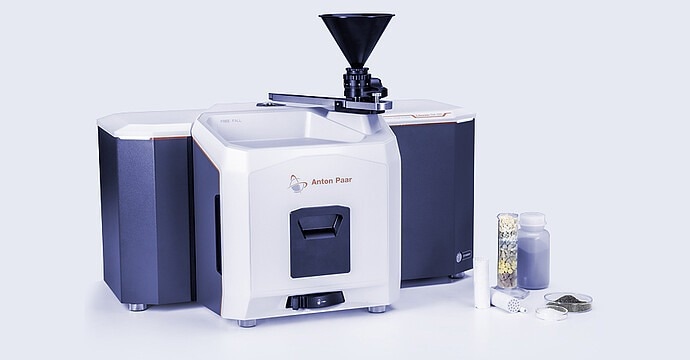

The Litesizer DIA 500 features three dispersion units, enabling the measurement of various samples:
- Liquid Flow (dispersion liquid)
- Dry Jet (compressed air)
- Free Fall (gravitational fall)
The Quick-Click feature allows users to switch between dispersion units in one move, without the need to adjust or change tubes, pipes, or cables.
Powerful Automated Features
Image Credit: Anton Paar GmbH
The Litesizer DIA 500’s range of automation features enables streamlined, efficient measurement and analysis while allowing users to focus on other critical tasks. These include:
- Automatic setting of the optimal sample feeding rate
- Automated filing, draining, and rinsing of the dispersion liquid
- Optimized data inflow features maximize data quality and expedite analysis, including the auto-filtering of particles of interest.
Technical Specifications
Source: Anton Paar GmbH
| . |
. |
. |
| Measurement principle |
Dynamic Image Analysis |
| Measurement ranges |
Liquid Flow |
0.8 μm to 2,500 μm |
| TEXT |
Dry Jet |
0.8 μm to 5,000 μm |
| TEXT |
Free-Fall |
0.8 μm to 8,000 μm |
| Data collection rate |
144 fps at 5 MPix |
| Optical systems |
Zoom: |
0.8 μm to 300 μm |
| Standard: |
10 μm to 8,000 μm |
|
Automatic switch between objectives. Automatic merge of size ranges.
Both optical systems available in standard configuration.
|
|
| Data transfer |
1 x 10 Gigabit Ethernet, 1x USB-A 3.0 |
| Camera and resolution |
5 MPix / 0.8 μm per pixel |
| Measurement parameters |
Weighting modes: |
Number-, surface-, and volume-based models |
| Particle size and shape: |
Feret diameters (min, max), projected area equivalent diameter of a particle, length, geodesic length (length of a fiber), axes length of the Legendre ellipse (min, max), aspect ratio, ellipse ratio, irregularity, elongation, circularity, form factor, compactness, extent, solidity, convexity |
| Other parameters: |
Compliant with ISO 9276 Sharpness, contrast |
| Instrument data |
Dimensions (H x W x D) |
400 mm x 790 mm x 290 mm |
| Weight without PC and dispersion units |
Approx. 41 kg (90 lb) |
| Power supply |
230 V to 110 V, 50/60 Hz |
| Compressed air supply |
5 bar to 10 bar |
| Water supply |
Max. 8 bar |
| Compatible dispersion units |
Liquid Flow |
Dispersion using a liquid carrier, mixing, and ultrasonication |
| Dry Jet |
Dispersion via compressed air and Venturi nozzle |
| Free Fall |
Dispersion via gravitational fall |
| Mounting system of dispersion units |
Quick-Click technology – mounting in less than 5 seconds |
| Automation |
Automatic imaging frame rate adjustment |
| Accessories available |
Pre-configured PC Calibration tool |
Standards
ISO
- 9276-2
- 9276-6
- 9276-11
- 13322-1
- 13322-2
- 14488
