DMA 5001 Sound Velocity is the ideal tool for rapid concentration determination. It offers unmatched accuracy and efficiency by seamlessly combining density and sound velocity measurements.
Quality control and research and development departments in numerous industries can use it to improve productivity and streamline processes. Its automatic concentration determination reduces the need for human intervention by maximizing efficiency.
Discover the future of analysis—the density and sound velocity meter DMA 5001 Sound Velocity is the only device with a single setup to measure sulfuric acid concentration over the whole range.
- A single device that measures both density and sound velocity
- Establishes the concentration of solutions with two and three components
- Industry-specific profile “Chemicals”
- Benefit from 40 years of application experience
- Successor to the DSA 5000 M
Key Features

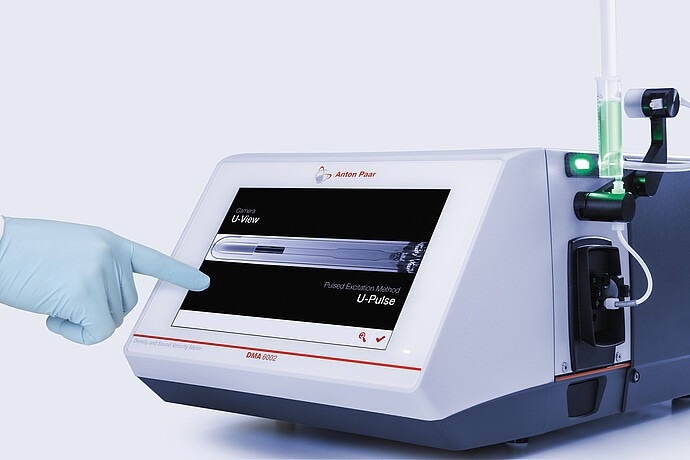

Density and Sound Velocity Measurement Combined in Just One Instrument
Image Credit: Anton Paar GmbH
The superior DMA 5001 Sound Velocity, the only instrument that combines the two measurement technologies in a single setup, is the result of the company’s more than four decades as the market leader in density and sound velocity measurement. Thanks to the repeatability of up to 0.1 m/s for sound velocity and up to 1 * 10–6 g/cm3 for density, users can obtain high-precision results in less than three minutes.

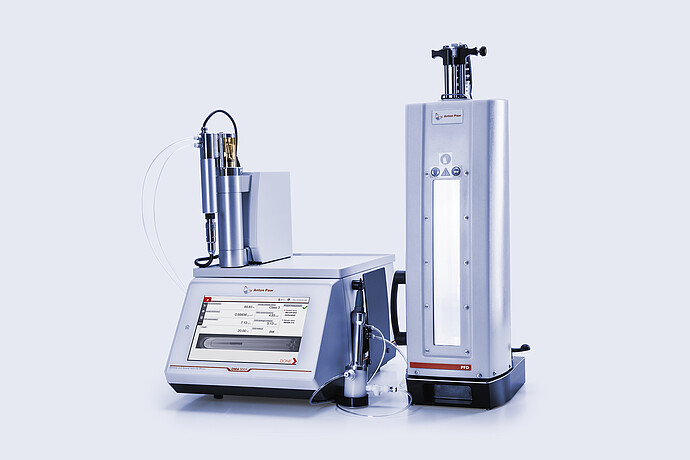

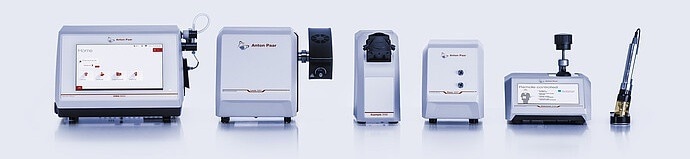

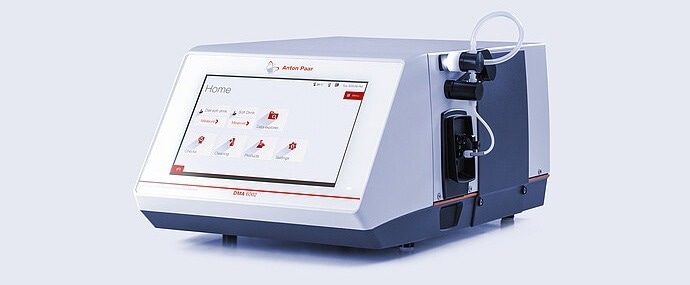

Modularity Enables Multiparameter Analysis
Image Credit: Anton Paar GmbH
With sophisticated multiparameter measurement systems, which can measure more than 10 parameters in a single cycle from a single sample, users can extract the most information possible from the sample with unmatched efficiency and accuracy.
The DMA 5001 Sound Velocity offers unparalleled precision, repeatability, and reproducibility, especially when measuring binary and ternary solutions and figuring out the sugar inversion process. By integrating different filling systems (Xsample sample changer family) users can measure 20+ samples per hour for high sample throughput.
Additional modules, including turbidity, pH value, refractive index, and concentrations of CO2 and O2, allow users to extract even more information.

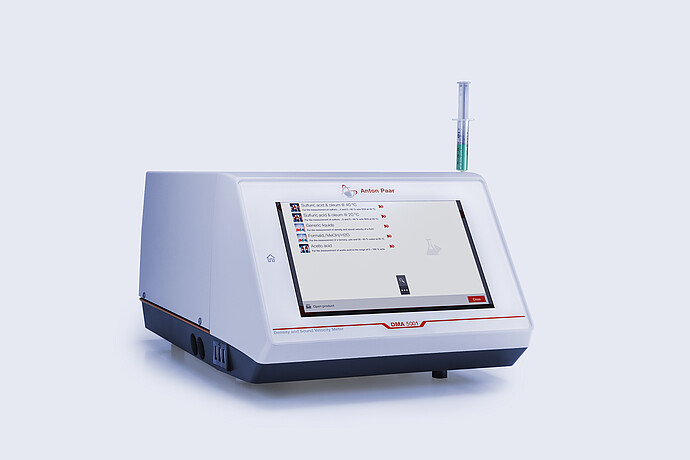

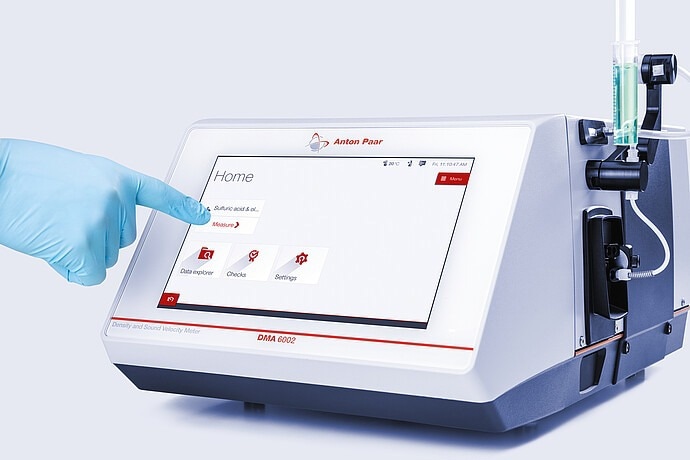

Benefit From More Than Four Decades of Application Experience
Image Credit: Anton Paar GmbH
The DMA 5001 Sound Velocity is well-suited for various industries, including the beverage industry (such as soft drinks) and chemical production (such as sulfuric acid), thanks to more than 30 methods and four decades of application experience. Many pre-defined tables have been integrated, including acid/base tables, which are crucial for figuring out the concentration of binary and ternary mixtures.
The DMA 5001 Sound Velocity’s accuracy and adaptability make it a vital tool for ensuring quality and uniformity across numerous production processes.

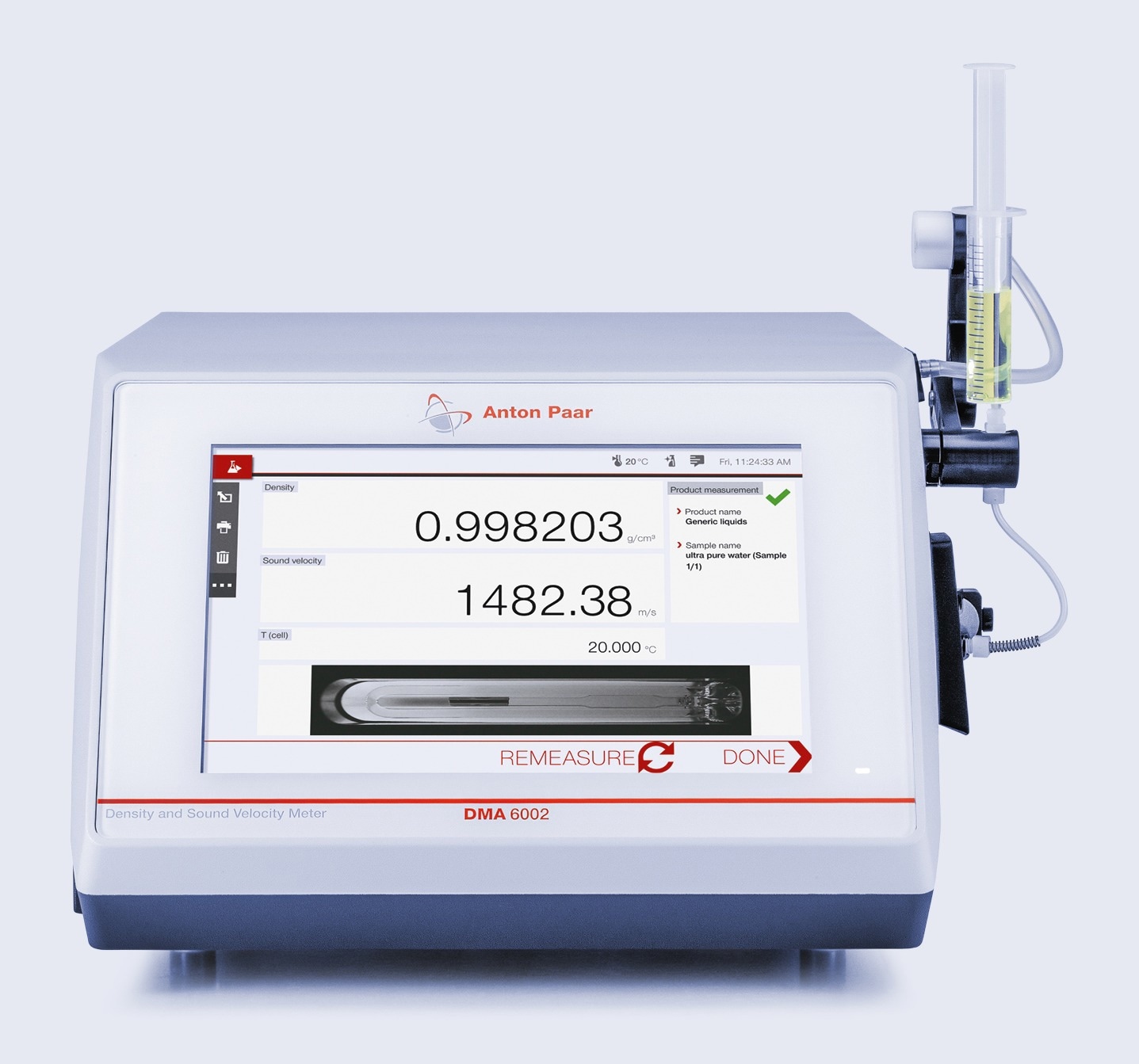

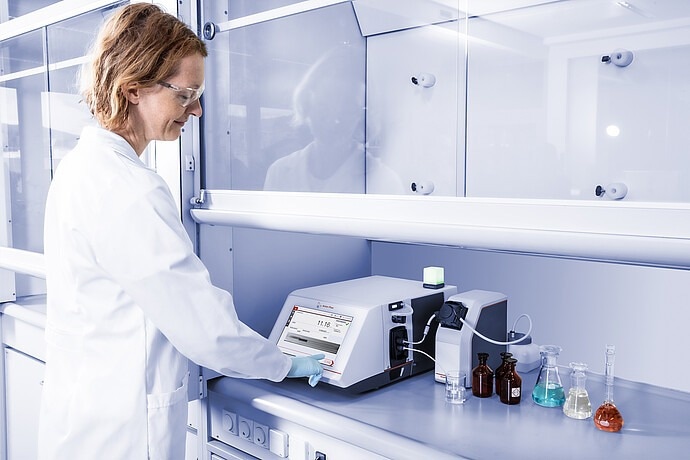

The Most Stable Results Available
Image Credit: Anton Paar GmbH
Rely on features such as ThermoBalanceTM, the U-ViewTM camera, viscosity correction, and Filling CheckTM to ensure all analyses maintain 100% accuracy and traceability.
FillingCheckTM quickly identifies any filling errors and, if necessary, issues a warning by identifying gas bubbles or other particles in the sample.

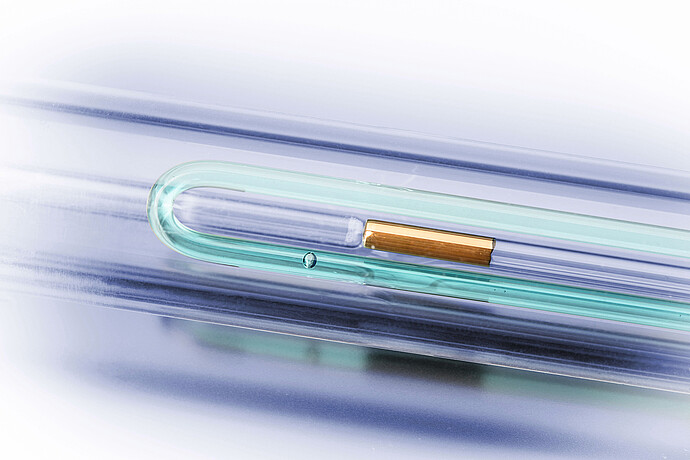

The U-ViewTM camera provides live images of the filled U-tube for continuous monitoring.
Viscosity correction successfully removes viscosity-related errors throughout the samples’ whole viscosity range, ensuring high repeatability of density results. ThermoBalanceTM provides precise results directly upon changes in measurement temperature.
Global Support, Local Assistance: Peace of Mind with Anton Paar Certified Service
Image Credit: Anton Paar GmbH
Take advantage of the vast global network of more than 35 subsidiaries and 85 service partners worldwide, which guarantees users receive local support in their preferred language and in the shortest amount of time.
The investment is protected throughout its lifecycle with Anton Paar Certified Service, supported by more than 350 manufacturer-certified technical experts globally. Benefit from the extra assurance of a three-year warranty, which ensures reliability and longevity.
Technical Specifications
Source: Anton Paar GmbH
| Measuring range |
| Density |
0 g/cm³ to 3 g/cm³ |
| Sound Velocity |
1000 m/s to 2000 m/s |
| Temperature |
0–100 °C (32–212 °F) |
| Pressure |
Up to 8 bar (116 psi) relative pressure |
| Accuracy |
| Density |
0.000005 g/cm³ |
| Temperature |
0.01 °C (0.02 °F) |
| Repeatability |
| Density |
0.000001 g/cm³ |
| Sound Velocity |
0.1 m/s |
| Temperature |
0.001 °C (0.002 °F) |
| Reproducibility |
| Density |
0.000005 g/cm³ |
| Sound Velocity |
0.5 m/s |
| Digital resolution |
| Density |
0.000001 g/cm³ |
| Sound Velocity |
0.01 m/s |
| Features |
| Power features |
U-ViewTM, FillingCheckTM, ThermoBalanceTM, full-range viscosity correction |
| Special functions |
QM compliance, temperature scan, built-in ambient pressure sensor, condition monitoring |
| Automation |
Automatic sample changers |
| Modularity |
pH, alcohol, CO2, O2, color, turbidity, refractive index |
| Integrated conversion tables and functions |
- Alcohols
- Acids/bases
- Inorganic salts
- Extract/sugar
- Others ,(e.g. ternary solutions)
- Diet functionality
|
| Available options |

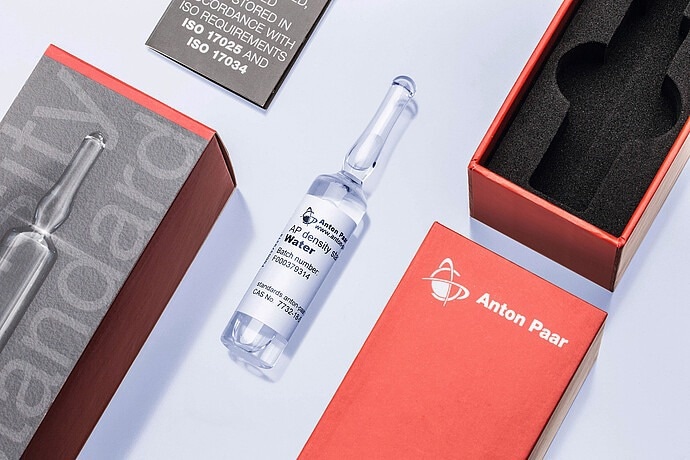

- ISO 17025 calibration providing full traceability to SI units (applies to density only)
- Cooling kit for low-temperature measurement
|
| Technical data |
| Typical measuring time/sample |
30 s |
| Minimum sample volume |
Approx. 3.5 mL |
| Wetted materials |
PTFE, Stainless steel DIN 1.4539 / UNS N08904, borosilicate glass |
| Dimensions (L x W x H) |
526 mm x 347 mm x 230 mm (20.7 in x 13.7 in x 9 in) |
| Weight |
22.62 kg (49.87 lbs) |
| Power supply |
AC 100 to 240 V, 50/60 Hz, fluctuation ±10 %, 190 VA |
| Display |
10.1" TFT WXGA (1280 x 800 px); PCAP touchscreen |
| Controls |
Touchscreen, optional keyboard, mouse, and barcode reader |
| Communication interfaces |
5 x USB, Ethernet, CAN, RS232 |
| Internal storage |
More than 10,000 measuring values with camera images |
