The seamless integration of surface metrology in manufacturing can be of huge benefit. Integrated surface metrology allows manufacturers to have instantaneous feedback on their production processes, improving product quality and cost-efficiency.
The TopMap surface metrology systems from Polytec are built for the monitoring of manufacturing processes; helping manufacturers ensure that their process capabilities are met and that production stays within defined tolerances.
Reduce Rejection Rates – Increase Process Capability
An entire new package of innovative features for quality control tasks are now available for the TopMap 3D surface profiling systems. The TopMap QC Package supports surface inspections especially in challenging production environments.
- The QC Verifier avoids false rejects in challenging production environments by compensating for environmental disturbances that impact the precision measurement
- The QC Protection Housing provides substantial resistance to rough production environments

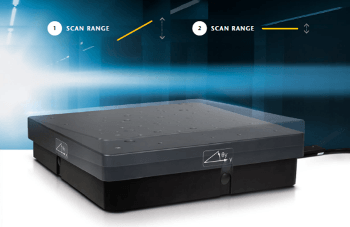

- Time-saving motorized Tip-Tilt Unit for accurate sample positioning
- The QC Software Customization provides for application-specific adaptations in software and easy integration of inline measurements
- The QC Operator Interface offers simple one-click solutions at production level thanks to pre-defined measurement recipes
- The QC Barcode Scanner simplifies loading the right settings and helps to avoid operator failures
- The QC Setting Comparator helps attain global standardization with simplified monitoring of measurement settings and fast diagnostics
Key Benefits
- The innovative ECT Environmental Compensation Technology helps to avoid false rejects in challenging production environments
- Achieve and monitor global quality standards
- Time-saving motorized Tip-Tilt Unit provides precise sample positioning
- Simplified loading of settings saves time
- Simple one-click solutions help to avoid operator failures and save time
- Protect measurements in rough production environments
TopMap optical surface metrology using ECT Environmental Compensation Technology
Reduce Rejection Rates in Surface Quality Inspection with TopMap QC Package

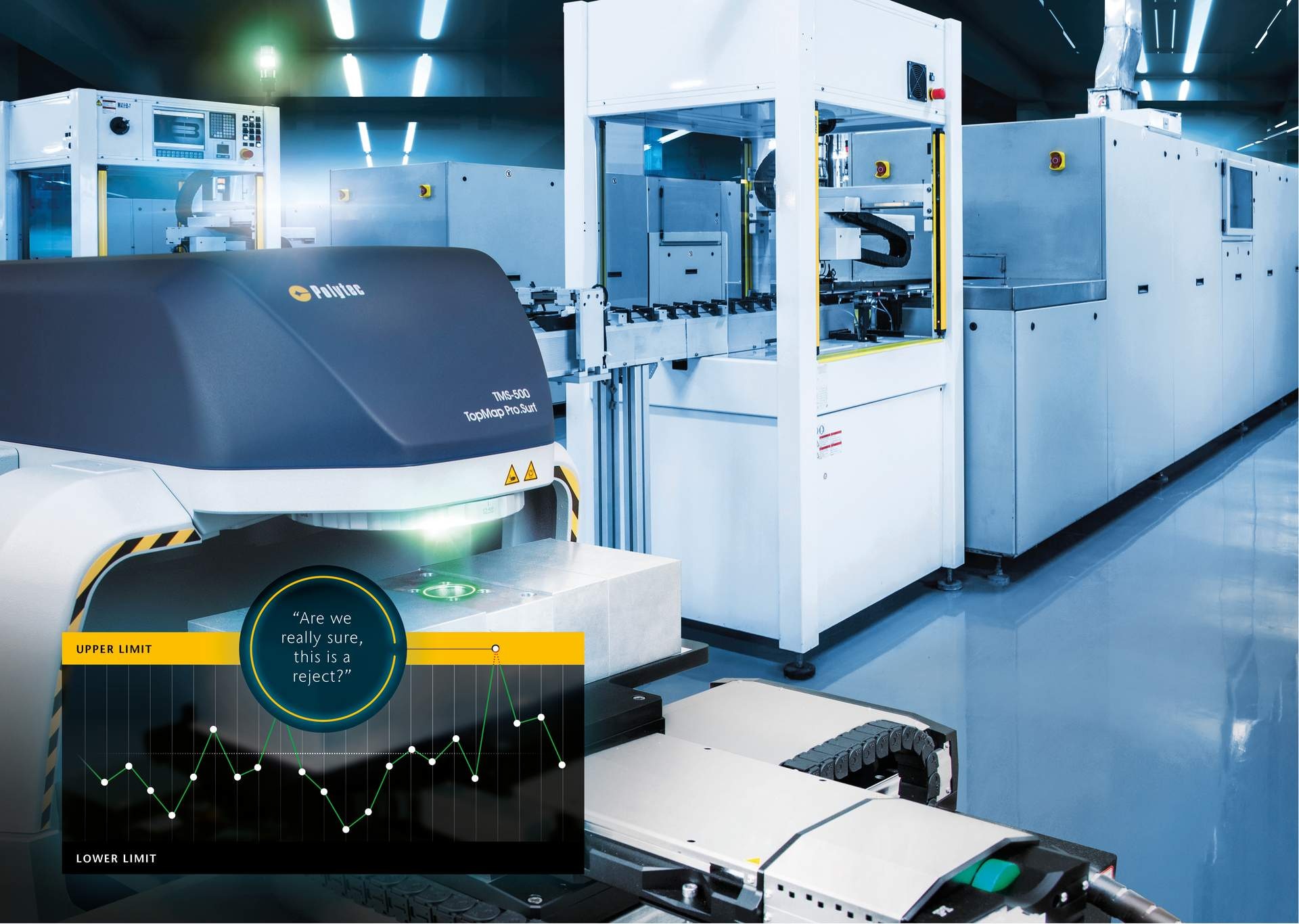

Avoid false rejects in production environments with the ECT Environmental Compensation Technology.

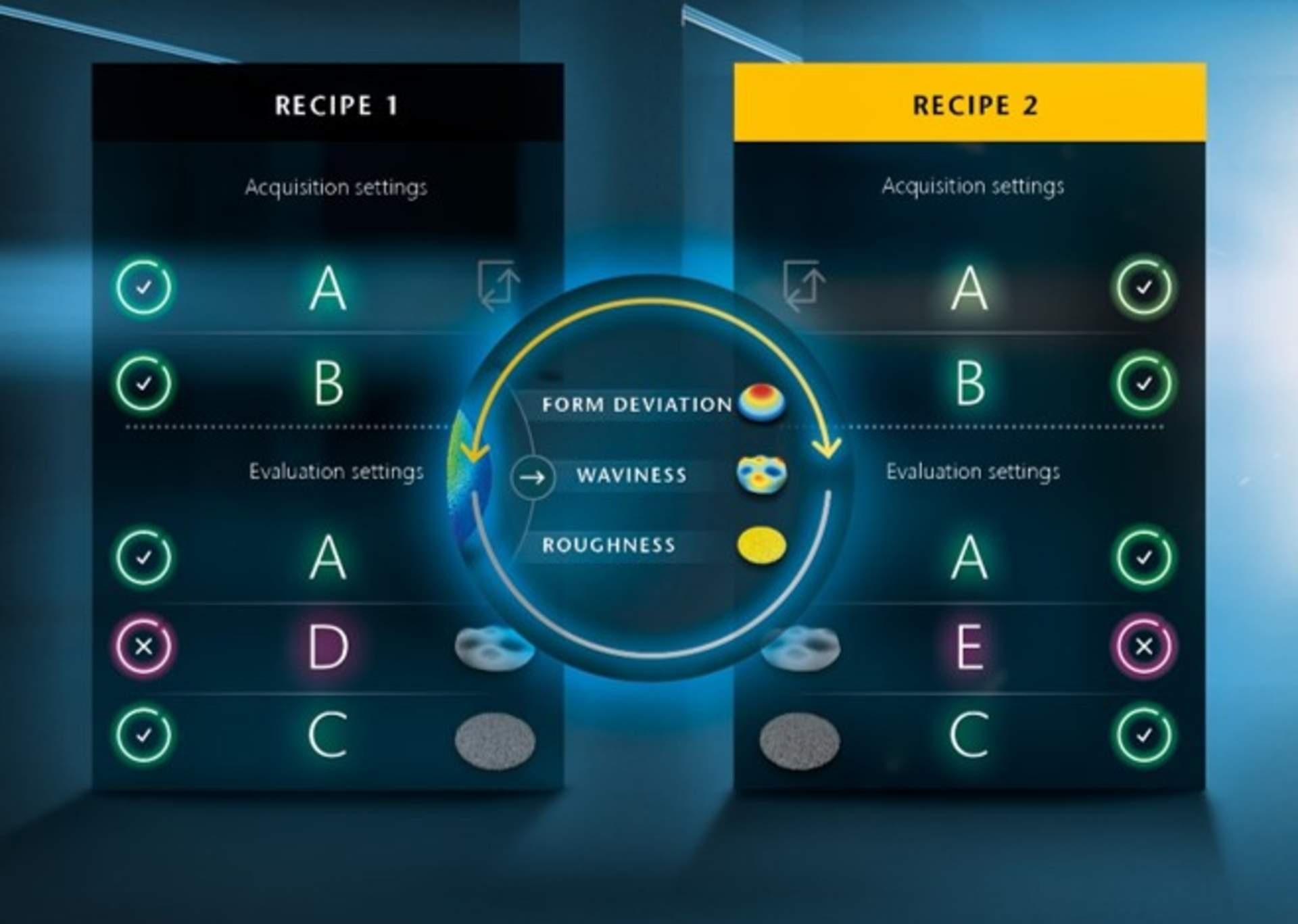

Compare and synchronize measurement settings and parameters for standardized surface inspections.

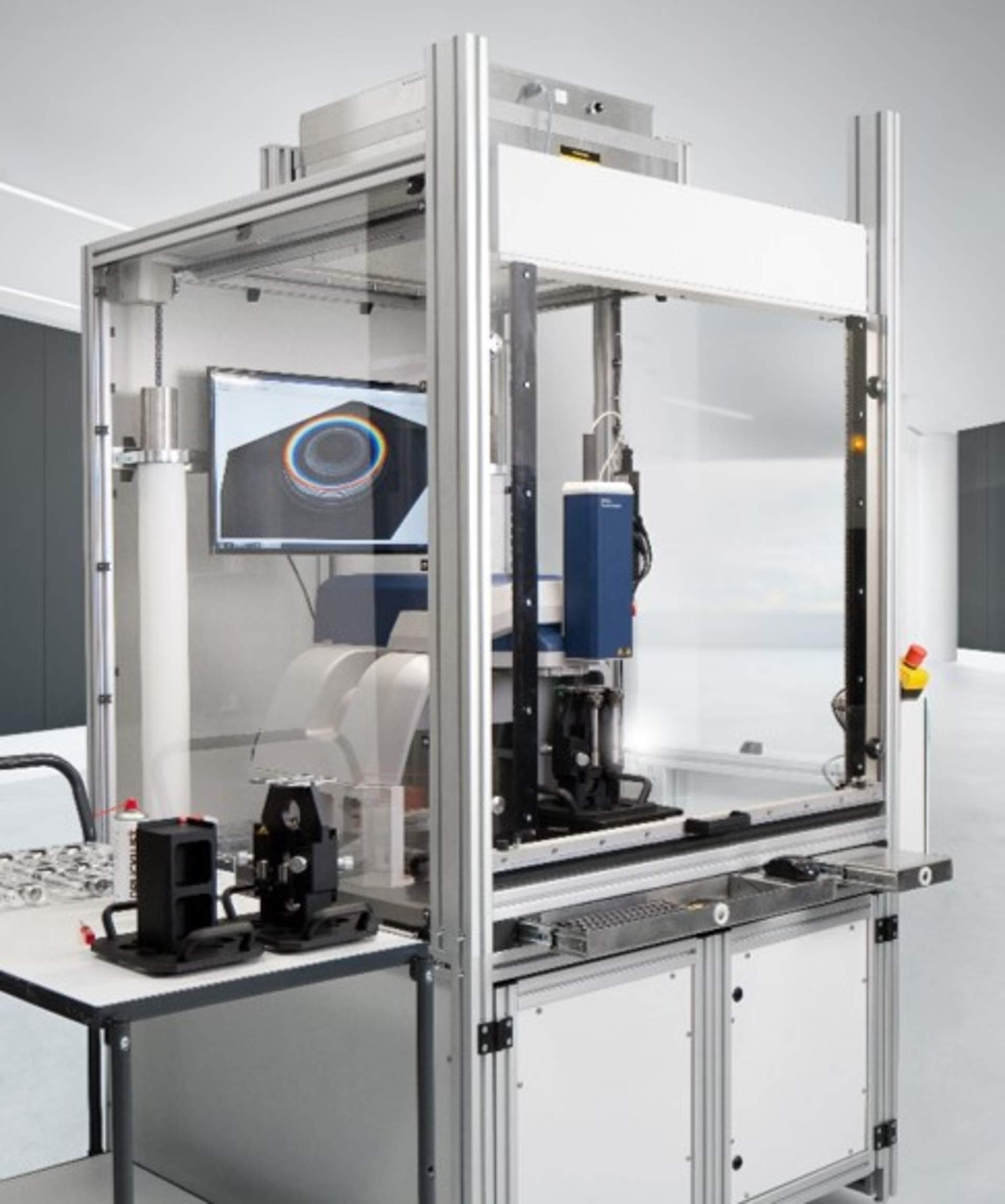

Isolating surface inspections from harsh production environments.

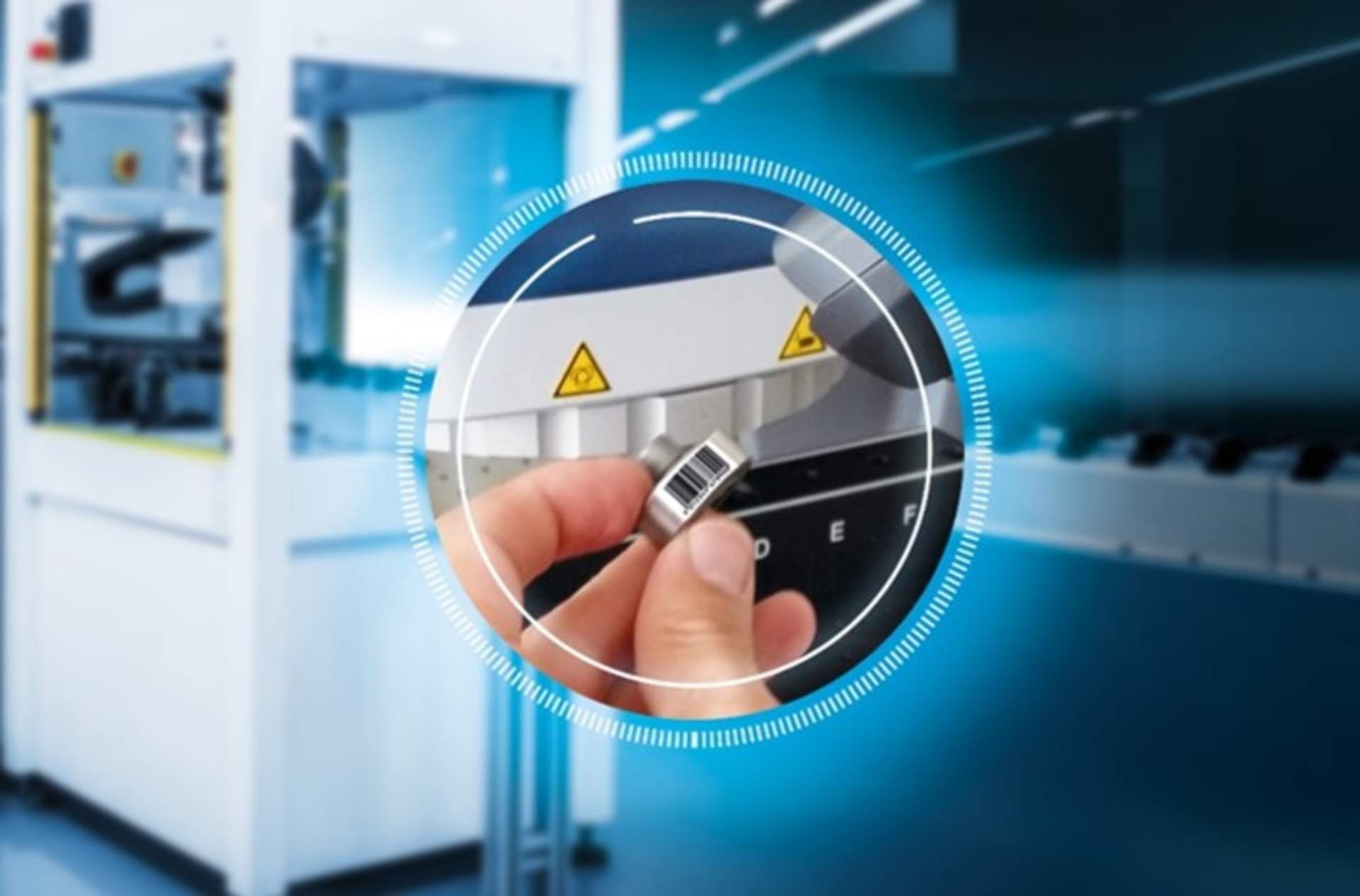

Loading the right settings with the Polytec barcode scanner avoids operator errors.
