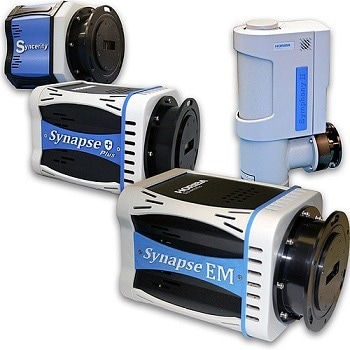

HORIBA Scientific provides a full range of spectroscopic multi-channel detectors for scientific analysis. Two-dimensional CCDs and indium gallium arsenide linear arrays offer a quicker acquisition option for spectrum detection from UV to near-IR than single-point detectors with reasonably good sensitivity.
Custom spectroscopy packages can be created for various applications when combined with HORIBA’s aberration-corrected, flat-field image spectrographs.
Features
CCDs

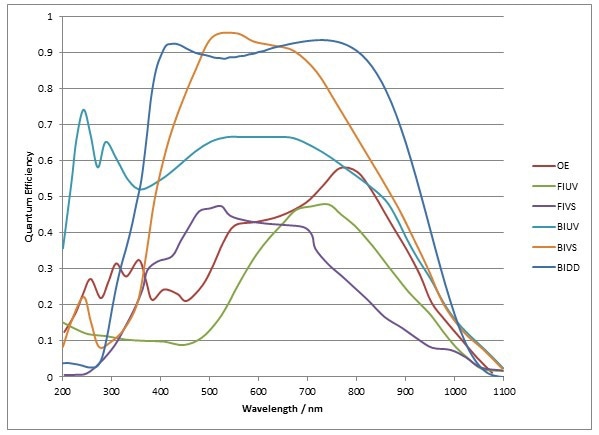

Quantum efficiency by type of CCD
Image Credit: HORIBA Scientific
*OE- open electrode, FIUV- front illuminated UV enhanced, FIVS- front illuminated visible, BIUV- back-illuminated UV enhanced, BIVS- back-illuminated visible, BIDD- back-illuminated deep depletion
Selection of all HORIBA spectroscopy CCDs
Source: HORIBA Scientific
| |
Cooling |
Type* |
Peak QE |
Array Dimension |
Pixel Size |
|
Syncerity
|
TE -60 °C
|
OE
|
58%
|
1024 x 256
|
26 µm x 26 µm
|
|
TE -50 °C
|
BI UV-VIS
|
78%
|
2048 x 70
|
14 µm x 14 µm
|
|
SynapsePlus
High Speed CCD
|
TE -80 °C
-95 °C with optional
external cooling
|
OE
|
56%
|
1024 x 256
|
26 µm x 26 µm
|
|
FIVS
|
47%
|
2048 x 512
|
13.5 µm x 13.5 µm
|
|
FIUV
|
48%
|
2048 x 512
|
13.5 µm x 13.5 µm
|
|
BIVS
|
95%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13.5 µm x 13.5 µm
|
|
BIUV
|
75%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13.5 µm x 13.5 µm
|
|
BIDD
|
<90%
|
1024 x 256
|
26 µm x 26 µm
|
|
Synapse CCD
|
TE -75 °C
-95 °C with optional
external cooling
|
|
FIVS
|
56%
|
512 x 512
|
24 µm x 24 µm
|
|
BIVS
|
95%
|
512 x 512
|
24 µm x 24 µm
|
|
BIUV
|
75%
|
512 x 512
|
24 µm x 24 µm
|
|
Symphony II CCD
|
LN2-133 °C
|
OE
|
58%
|
1024 x 256
|
26 µm x 26 µm
|
|
FIVS
|
56%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13 µm x 13 µm
|
|
FIUV
|
58%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13 µm x 13 µm
|
|
BIVS
|
95%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13 µm x 13 µm
|
|
BIUV
|
75%
|
1024 x 256
2048 x 512
|
26 µm x 26 µm
13 µm x 13 µm
|
|
BIDD
|
95%
|
1024 x 256
|
26 µm x 26 µm
|
*OE- open electrode, FIUV- front illuminated UV enhanced, FIVS- front illuminated visible, BIUV- back-illuminated UV enhanced, BIVS- back-illuminated visible, BIDD- back-illuminated deep depletion
UV-VIS-NIR EMCCDs

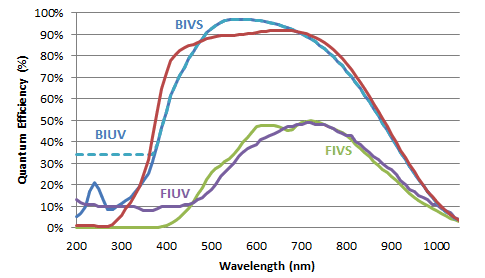

Quantum efficiency by type of EMCCD
Image Credit: HORIBA Scientific
*FIUV- front illuminated UV enhanced, FIVS- front illuminated visible, BIUV- back-illuminated UV enhanced, BIVS- back-illuminated visible, BIDD- back-illuminated deep depletion
Selection of Synapse EMCCDs
Source: HORIBA Scientific
| |
Cooling |
Type* |
Peak QE |
Array Dimension |
Pixel Size |
|
Synapse EMCCD
|
TE -60 °C
-75 °C with optional
external cooling
|
FIVS
|
49%
|
1600 x 200
1600 x 400
|
16 µm x 16 µm
|
|
FIUV
|
49%
|
1600 x 200
1600 x 400
|
16 µm x 16 µm
|
|
BIVS
|
95%
|
1600 x 200
1600 x 400
|
16 µm x 16 µm
|
|
BIUV
|
95%
|
1600 x 200
1600 x 400
|
16 µm x 16 µm
|
|
BIDD
|
92%
|
1600 x 200
|
16 µm x 16 µm
|
*OE- open electrode, FIUV- front illuminated UV enhanced, FIVS- front illuminated visible, BIUV- back-illuminated UV enhanced, BIVS- back-illuminated visible, BIDD- back-illuminated deep depletion
Near-IR InGaAs Linear Arrays

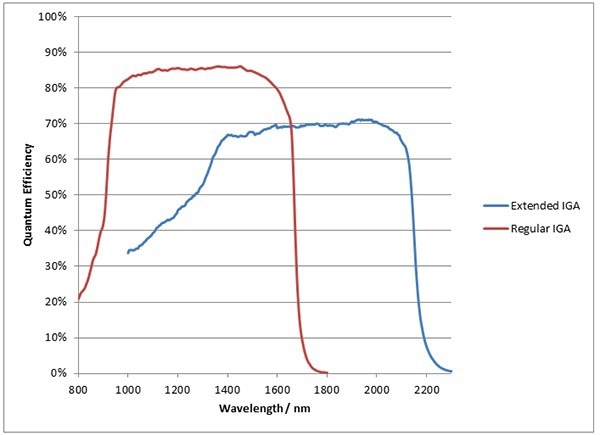

Quantum Efficiency by Type of InGaAs
Image Credit: HORIBA Scientific
Source: HORIBA Scientific
| Cooling |
Wavelength |
Array Dimension |
Element Size |
|
|
Synapse InGaAs
|
TE -60 °C
-75 °C with optional
external cooling
View Spec Sheet
|
800-1650 nm
|
512 x 1
512 x 1
1024 x 1
|
25 µm x 500 µm
50 µm x 500 µm
25 µm x 500 µm
|
|
1050-2100 nm
|
512 x 1
512 x 1
1024 x 1
|
25 µm x 250 µm
50 µm x 250 µm
25 µm x 250 µm
|
|
Symphony II InGaAs
|
LN2-103 °C
View Spec Sheet
|
800-1600 nm
|
512 x 1
512 x 1
1024 x 1
|
25 µm x 500 µm
50 µm x 500 µm
25 µm x 500 µm
|
|
1000-2050 nm
|
512 x 1
512 x 1
1024 x 1
|
25 µm x 250 µm
50 µm x 250 µm
25 µm x 250 µm
|
