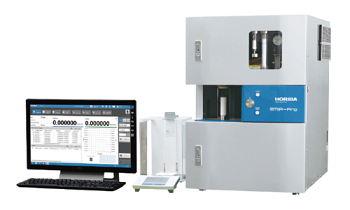

The EMIA-Pro Carbon/Sulfur Analyzer is based on HORIBA’s widely respected expertise in Non-Dispersive Infrared (NDIR) technology.
It provides durability, enhanced cleaning efficiency, improved user-friendly software, operability, and maintenance to guarantee effective measurements, and its shortened cycle time expedites the development and manufacturing speed of the users.
Features
Long MTBM (Mean Time Between Maintenance)
The newly-developed, unique cleaning mechanism (patent pending) clears the dust in the furnace, allowing the operator to continue to use the EMIA-Expert/Pro without maintenance cleaning for up to 200 measurements.*
*It relies on sample and measurement condition
Before measurement. Image Credit: Horiba Scientific
After 200 measurements. Image Credit: Horiba Scientific
High Throughput
The EMIA Series is able to complete one measurement cycle, “measurement-display result-cleaning,” in 70 seconds (that is, around 50 samples/hour).
Fast and Easy Maintenance
With the availability of the latest innovations, the cleaning time for the EMIA Series instruments is normally half that of the traditional models. The flat design near the crucible stands and the simple design beside the furnace also ease user access for cleaning.
Flat design around the crucible stand. Image Credit: Horiba Scientific

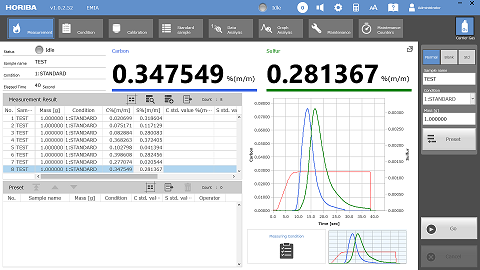

Advanced Operation Software
A strong focus was to guarantee that the EMIA-Expert/Pro Series was “easy-to-use.” Specifically, the Company focused on the layout, operating menus, and functions.
HORIBA has included a self-diagnostic monitor checking capability to check the connected device’s status, as well as an alarm function and three navigators to enable daily operation.
Image Credit: Horiba Scientific
This function uses the suggested best measurement flow and operating conditions based on experience.
- Troubleshooting Navigator
Automatic diagnosis system and troubleshooting navigator.
Periodic preventive maintenance work navigator by photos and videos.
Upgradable
The customer can extend the system’s functionality anytime based on their requirements, even after installation.
Upgrades include:
- Carrier gas purifier available for ultra-low concentration carbon measurement
- Halogen trap unit available
- Auto-sampler (20 positions)
Specifications
Source: Horiba Scientific
| Contents |
EMIA-Pro |
| Required sample amount |
1 g ± 0.1 g |
| Typical Meas. time |
70 seconds/cycle |
| Carbon |
Meas. Range (m/m) |
1.6 ppm - 6.0% |
| Blank accuracy |
σn-1 ≦ 0.8 ppm |
| Sulfur |
Meas. Range (m/m) |
2.0 ppm - 1.0% |
| Blank accuracy |
σn-1 ≦ 1.0 ppm |
| Sample Meas. Accuracy |
Carbon |
σn-1 ≦ 2.0 ppm
or RSD≦1.0% |
| Sulfur |
σn-1 ≦ 2.0 ppm
or RSD≦1.5% |
| Utility |
Carrier gas |
Oxygen
(Purity; 99.5%, Pressure; 0.30-0.33 MPa) |
| Operation gas |
Nitrogen
(Purity; 99.5%, Pressure; 0.35-0.38 MPa) |
| Power |
200/220/240 V, 50/60 Hz, 5 kVA |
| Dimensions |
Main unit* |
500 (W) x 725 (D) x 710 (H) mm |
| Mass |
Main unit |
approximately 134 kg |
| Data processing and operation |
USB data communication with PC Windows 8.1
Touch panel or Key board and mouse operation |
| Model name |
EMIA-20P: Carbon/Sulfur
EMIA-21P: Carbon
EMIA-22P: Sulfur |
(Note) "ppm" is equal to mg/kg.
*Except piping parts, projection parts (D:79mm) and flow meter on the back side.

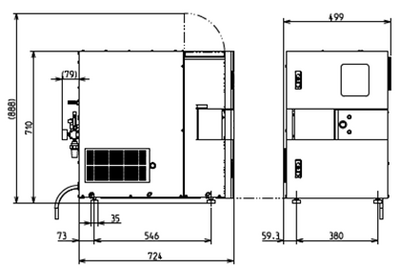

Schematics
Image Credit: Horiba Scientific
Accessories
Crucible Pre-Heating Unit
The crucible pre-heating unit, FK-100 with automatic transportation function, heats a ceramic crucible to 1100° in just 10 minutes before analysis.
Image Credit: Horiba Scientific
Autosampler
Automation crucible loading and disposing unit. Up to 20 pieces of crucible are available.
Consumables
Ceramic Crucible
Low carbon blank and high dimension tolerance are available for high-precision analysis.
Image Credit: Horiba Scientific
Accelerators
High-purity materials that assist stable analysis: Tungsten(W), Copper(Cu), Tin(Sn), and Iron(Fe).
Image Credit: Horiba Scientific
