The Cathodoluminescence Universal Extension from HORIBA Scientific improves any SEM’s analytical abilities while maintaining its original functionality. As the sample has the potential to remain in the same spot, it is possible for CLUE to be integrated easily with the availability of other microscopy applications, like EBIC and EDS.
Features
CLUE systems include HORIBA's MicroHR, iHR and LabRAM series spectrometers, Synapse Plus™ and Syncerity™ CCDs and EMCCDs, Symphony™ InGaAs arrays as well as photomultiplier tube detectors to create unrivaled flexibility.
In addition, CLUE is completely automated, regulated by LabSpec 6™ software, with data-fitting, experimental parameters, display, and export. It is user-friendly and provides advanced data acquisition routines and extensive system control.
Specifications

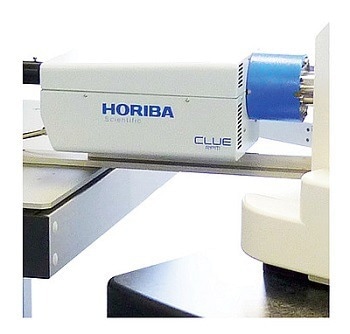

i-CLUE-e
Fast Imaging CL
Plug-and-Play Fast CL Imaging Module Features:
- Field upgradable to complete hyperspectral CL solution
- Ultra-compact panchromatic CL detection can be performed with PMT detection (200-900 nm)
- Driven by EM software
- Comes with a manually retractable ellipsoidal mirror with fine positioning adjustment
- Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage
- Large field of view available with High NA diamond-turned mirror
Image Credit: Horiba Scientific

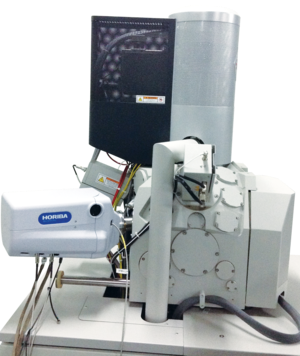

F-CLUE-e
Spectroscopy and Imaging CL
Rugged Fiber Coupled CL Add-on Detector Features:
- Ultra-compact multi-detector available for CL imaging and Spectroscopy
- Large field of view with High NA diamond-turned mirror
- iHR320, 1 Entrance, 2 Exits ports, 7 mm slits
- PMT 185-900 nm, integrated HV, CLLINK controller
- Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage
- Deep cooled CCD Open Electrode ranges from 200 to 1100 nm
- Completely driven by Labspec 6 Software
- Manually retractable ellipsoidal mirror available with fine positioning adjustment
Image Credit: Horiba Scientific

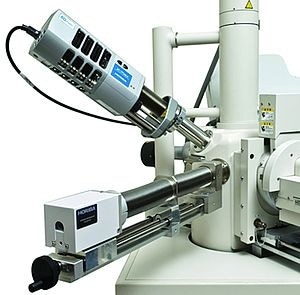

F-CLUE-p
Spectroscopy and Imaging CL
Fiber Coupled CL Add-on Detector Features:
- Ultra-compact multi-detector CL imaging and Spectroscopy
- iHR320, 1 Entrance, 2 Exits ports, 7 mm slits
- PMT 185-900 nm, combined HV, CLLINK controller
- Deep cooled CCD Open Electrode 200 to 1100 nm
- Large field of view with High NA diamond-turned mirror
- Remote control for Contrast, Brightness, Gain, Reverse signal, High voltage
- Motorized retractable parabolic mirror with fine positioning adjustment
- Completely driven by Labspec 6 Software
Image Credit: Horiba Scientific

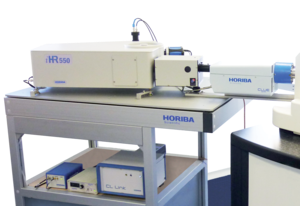

H-CLUE-p
Spectroscopy and Imaging CL
Directly Coupled High Sensitivity CL Add-on Detector Features:
- Extensive spectral range multi-detector CL imaging and Spectroscopy
- iHR320, 1 Entrance, 2 Exits ports, and 7 mm slits
- Deep cooled CCD Open Electrode ranges from 200 to 1100 nm
- Motorized retractable parabolic mirror with fine positioning adjustment
- Large field of view with High NA diamond-turned mirror
- Remote control for Brightness, Gain, Contrast, Reverse signal, High voltage
- Comes with PMT 185-900 nm, integrated HV, CLLINK controller
- Entirely driven by Labspec 6 Software
- Time Resolved CL, Angle Resolved CL, and polarization
Image Credit: Horiba Scientific

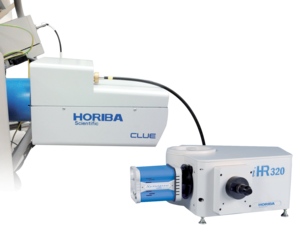

R-CLUE-p
Spectroscopy and Imaging CL, Raman and PL
Fiber Coupled Versatile SEM-Raman-PL-CL Add-on Detector Features:
- Field upgradable on users’ Raman microscope
- Multi-laser and multi-detector Raman, PL, and CL Add-on for Scanning Electron Microscope imaging and Spectroscopy
- Large field of view with High NA diamond-turned mirror
- Completely driven by Labspec 6 Software
- Several focal lengths spectrometers
- Deep cooled CCD Open Electrode ranges from 200 to 1100 nm
- Motorized retractable parabolic mirror with fine positioning adjustment
- Remote control available for Brightness, Contrast, Gain, Reverse signal, High voltage
Image Credit: Horiba Scientific
