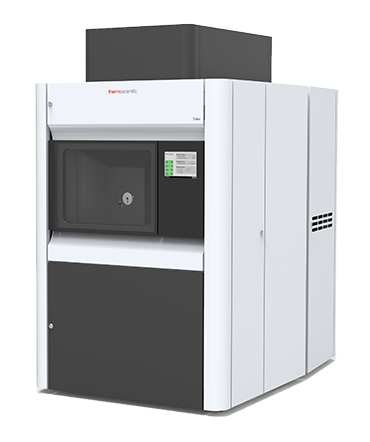

The Thermo Scientific Talos F200C TEM is a 20-200 kV thermionic (scanning) transmission electron microscope that has been specifically designed to ensure performance and productivity across a wide range of samples and applications, such as 2D and 3D imaging of cells, organelles, asbestos, polymers, and soft materials, both at ambient and cryogenic temperatures.
With its optional, motorized, retractable cryo-box and low-dose technique, this device elevates the imaging quality of beam-sensitive materials. A side-entry retractable energy dispersive spectroscopy (EDS) detector can also be added to the configuration for chemical analysis.
The large C-Twin pole piece gap, which provides high application flexibility, in combination with a reproducibly performing electron column, opens up a whole new realm of opportunities for high-resolution 3D characterization, in situ dynamic observations, and diffraction applications, with a particular emphasis on high-contrast imaging and cryo-TEM.
The Talos F200C TEM is outfitted with the rapid 4k × 4k Thermo Scientific Ceta 16M Camera, offering a wide field of view and swift imaging capabilities. It operates on a 64-bit platform, ensuring high sensitivity in image capturing.
Thermo Scientific Maps Software facilitates intuitive image-based navigation over a whole sample and easily correlates results across imaging platforms. For high-resolution, large-area imaging, the software automatically acquires and stitches together images, ensuring the entire area of interest is documented with exceptional quality.
Maps Software can be used across tools and within the tool. It supports the import, overlay, and alignment of images from various microscopes, including SEM and light microscopy. This feature allows for digital zooming from correlated low-magnification TEM and/or SEM images to high-resolution TEM (HRTEM), offering valuable contextual information.
Talos F200C Transmission Electron Microscope Features
Superior Images
High-quality, high-contrast TEM and STEM imaging with up to four-channel integrated STEM detectors for simultaneous, multiple signal detection.
Improved Productivity and Reproducibility
Featuring an ultra-stable column and SmartCam remote operation, along with constant power objective lenses, the system allows for rapid mode and high-tension switching, ideal for multi-user settings.
Space for More
Large analytical pole piece gap, 180° stage tilt range, and large z-range allow you to add tomography holders, in situ sample holders, and more.
Auto-Alignments
All daily TEM tunings, such as focus, eucentric height, center beam shift, center condenser aperture, and rotation center, are automated.
Chemical Composition Data
Flexible EDS analysis reveals chemical information.
Ceta CMOS Camera
The 4k × 4K Ceta CMOS Camera's wide field of view allows for high-speed, high-sensitivity live digital zooming over the whole high-tension range.
Specifications
Source: Thermo Fisher Scientific – Electron Microscopy Solutions
| . |
. |
|
TEM information limit
|
|
|
TEM point resolution (nm)
|
|
|
STEM resolution (nm)
|
|
